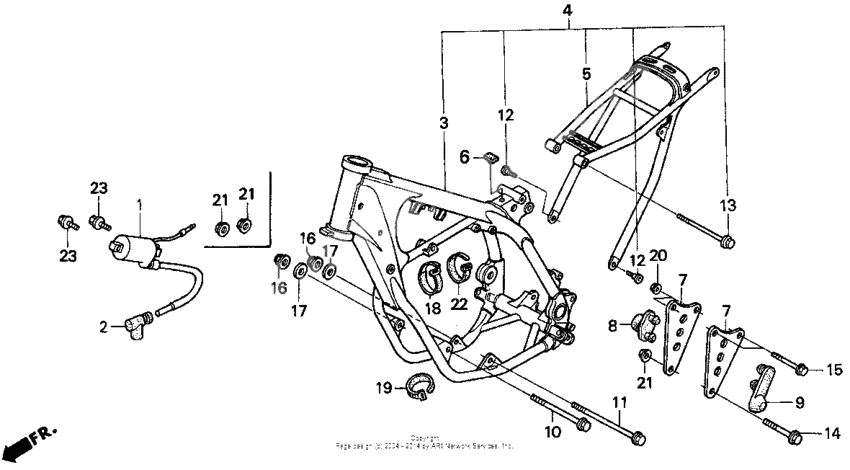

Frame 92-96
Frame 92-96
Coil assy., ignition (Ref #1)
1
Part #30500-KZ3-891
Cap assy. (Ref #2)
2
Part #30700-KA5-771
Frame *nh333* (Ref #4)
4
Part #50100-KZ3-890ZB
Frame, rr. *nh333* (Ref #5)
5
Part #50140-KZ3-890ZB
Rubber, stopper (Ref #6)
6
Part #50352-KE1-000
Bracket, head hanger (Ref #7)
7
Part #50401-KZ3-860
Bracket, head hanger (Ref #7)
7
Part #50401-KZ3-860
Bracket, head hanger (Ref #7)
7
Part #50401-KZ3-860
Bracket, head hanger (Ref #7)
7
Part #50401-KZ3-860
Rubber, tank stopper (Ref #8)
8
Part #50405-KZ4-000
Rubber, bolt cap (Ref #9)
9
Part #50405-ML3-770
Bolt, flg (10x113) (Ref #10)
10
Part #90181-KE7-000
Bolt, flg (10x130) (Ref #11)
11
Part #90119-MJ0-000
Bolt, rr. (8x22) (Ref #12)
12
Part #90118-KZ3-860
Bolt, rr. (8x22) (Ref #12)
12
Part #90118-KZ3-860
Bolt, rr. (8x22) (Ref #12)
12
Part #90118-KZ3-860
Bolt, rr. (8x22) (Ref #12)
12
Part #90118-KZ3-860
Болт (Ref #13)
13
Part #90108-GN1-000
Болт (Ref #14)
14
Part #90112-GK4-000
Болт (Ref #15)
15
Part #90135-KZ3-700
Nut, axle, 10mm (Ref #16)
16
Part #90304-GA6-003
Nut, axle, 10mm (Ref #16)
16
Part #90304-GA6-003
Nut, axle, 10mm (Ref #16)
16
Part #90304-GA6-003
Nut, axle, 10mm (Ref #16)
16
Part #90304-GA6-003
Шайба (Ref #17)
17
Part #90410-HC4-000
Шайба (Ref #17)
17
Part #90410-HC4-000
Шайба (Ref #17)
17
Part #90410-HC4-000
Шайба (Ref #17)
17
Part #90410-HC4-000
Band, wire, 165mm (black) (Ref #18)
18
Part #90651-KV6-003
Band, wire (black) (Ref #19)
19
Part #90652-KT1-771
Гайка (Ref #20)
20
Part #94050-08000
Band b1, wire (Ref #22)
22
Part #32161-404-000
BOLT (Ref #23)
23
Part #96001-060-180-0
BOLT (Ref #23)
23
Part #96001-060-180-0
BOLT (Ref #23)
23
Part #96001-060-180-0
BOLT (Ref #23)
23
Part #96001-060-180-0
