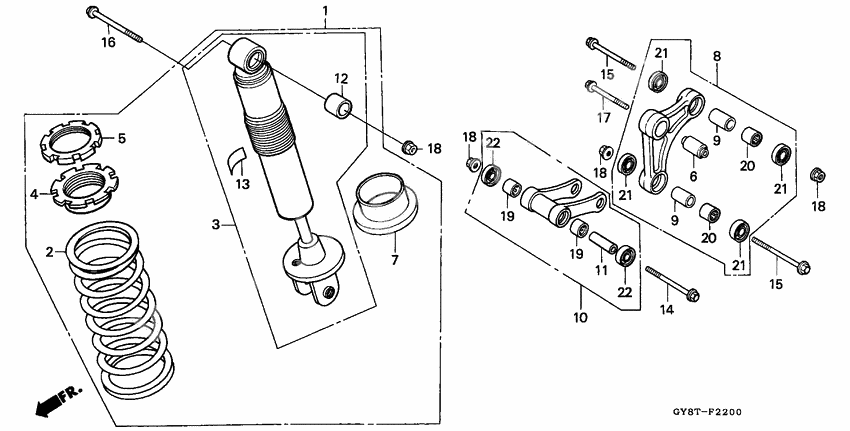

Rear cushion
Rear cushion
Cushion ass*r134* (Ref #1)
1
Part #52400-GY8-891ZB
Spring,rr c*r134* (Ref #2)
2
Part #52401-GY8-901ZA
Damper set,rear (Ref #3)
3
Part #52409-GY8-305
ADJUSTER,SPRING (Ref #4)
4
Part #52422-GC4-701
NUT,ADJUSTER (Ref #5)
5
Part #52423-GC4-701
Bush,damper lower (Ref #6)
6
Part #52451-GC5-000
Seat c,spring (Ref #7)
7
Part #52459-GC5-003
Arm assy cushion (Ref #8)
8
Part #52460-GY8-900
Collar,cush.arm (Ref #9)
9
Part #52462-GY8-900
Collar,cush.arm (Ref #9)
9
Part #52462-GY8-900
Collar,cush.arm (Ref #9)
9
Part #52462-GY8-900
Collar,cush.arm (Ref #9)
9
Part #52462-GY8-900
Rod assy cushion con (Ref #10)
10
Part #52470-GY8-900
Collor cushion co (Ref #11)
11
Part #52473-GY8-900
Colr, shock (upper) (Ref #12)
12
Part #52486-KB7-003
Label, rr. (Ref #13)
13
Part #87516-MBL-610
Bolt, flg (10x114) (Ref #14)
14
Part #90105-GJ1-000
Болт (Ref #15)
15
Part #90128-GE2-000
Болт (Ref #15)
15
Part #90128-GE2-000
Болт (Ref #15)
15
Part #90128-GE2-000
Болт (Ref #15)
15
Part #90128-GE2-000
Болт (Ref #16)
16
Part #90152-GC5-000
Болт (Ref #17)
17
Part #90153-MC4-003
BEARING,NEEDLE (Ref #19)
19
Part #91071-KY7-003
BEARING,NEEDLE (Ref #19)
19
Part #91071-KY7-003
BEARING,NEEDLE (Ref #19)
19
Part #91071-KY7-003
BEARING,NEEDLE (Ref #19)
19
Part #91071-KY7-003
Needle brg (Ref #20)
20
Part #91079-GC4-831
Needle brg (Ref #20)
20
Part #91079-GC4-831
Needle brg (Ref #20)
20
Part #91079-GC4-831
Needle brg (Ref #20)
20
Part #91079-GC4-831
DUST SEAL (Ref #22)
22
Part #91251-KY7-003
DUST SEAL (Ref #22)
22
Part #91251-KY7-003
DUST SEAL (Ref #22)
22
Part #91251-KY7-003
DUST SEAL (Ref #22)
22
Part #91251-KY7-003
