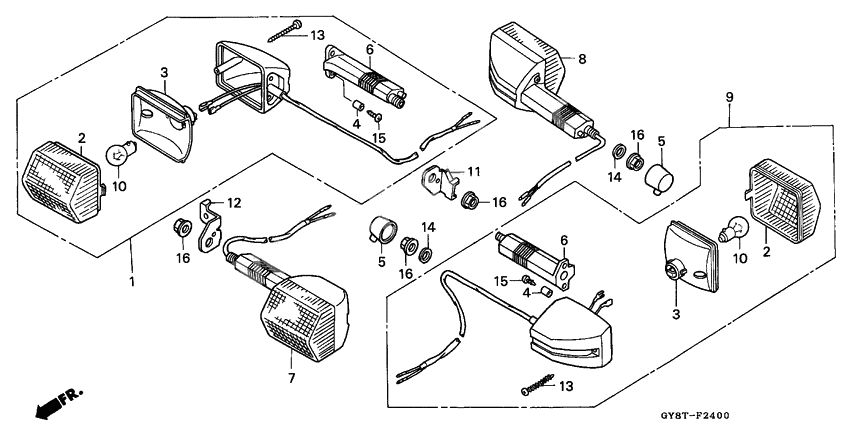

Winker
Winker
Winker assy r.fr. (Ref #1)
1
Part #33400-GY8-900
Lens winker (Ref #2)
2
Part #33402-KY4-900
Lens winker (Ref #2)
2
Part #33402-KY4-900
Lens winker (Ref #2)
2
Part #33402-KY4-900
Lens winker (Ref #2)
2
Part #33402-KY4-900
REFLECTOR (Ref #3)
3
Part #33403-KY4-900
REFLECTOR (Ref #3)
3
Part #33403-KY4-900
REFLECTOR (Ref #3)
3
Part #33403-KY4-900
REFLECTOR (Ref #3)
3
Part #33403-KY4-900
Coller 4.5mm (Ref #4)
4
Part #33411-GJ3-601
Coller 4.5mm (Ref #4)
4
Part #33411-GJ3-601
Coller 4.5mm (Ref #4)
4
Part #33411-GJ3-601
Coller 4.5mm (Ref #4)
4
Part #33411-GJ3-601
COVER (Ref #5)
5
Part #33425-MG2-000
COVER (Ref #5)
5
Part #33425-MG2-000
COVER (Ref #5)
5
Part #33425-MG2-000
COVER (Ref #5)
5
Part #33425-MG2-000
Stay,fr.winker (Ref #6)
6
Part #33441-GJ1-761
Stay,fr.winker (Ref #6)
6
Part #33441-GJ1-761
Stay,fr.winker (Ref #6)
6
Part #33441-GJ1-761
Stay,fr.winker (Ref #6)
6
Part #33441-GJ1-761
Winker assy l.fr. (Ref #7)
7
Part #33450-GY8-900
Winker assy r. rr. (Ref #8)
8
Part #33600-GY8-900
Winker assy l. rr. (Ref #9)
9
Part #33650-GY8-900
Bulb (12v10w) (Ref #10)
10
Part #34907-415-751
Bulb (12v10w) (Ref #10)
10
Part #34907-415-751
Bulb (12v10w) (Ref #10)
10
Part #34907-415-751
Bulb (12v10w) (Ref #10)
10
Part #34907-415-751
Stay r fr winker (Ref #11)
11
Part #53101-GJ1-760
Stay l fr winker (Ref #12)
12
Part #53102-GY8-900
Screw,tapping,4x5 (Ref #13)
13
Part #90102-KY4-900
Screw,tapping,4x5 (Ref #13)
13
Part #90102-KY4-900
Screw,tapping,4x5 (Ref #13)
13
Part #90102-KY4-900
Screw,tapping,4x5 (Ref #13)
13
Part #90102-KY4-900
Washer, special (Ref #14)
14
Part #90115-GY8-900
Washer, special (Ref #14)
14
Part #90115-GY8-900
Washer, special (Ref #14)
14
Part #90115-GY8-900
Washer, special (Ref #14)
14
Part #90115-GY8-900
Screw,tapping 4x1 (Ref #15)
15
Part #90156-GJ3-600
Screw,tapping 4x1 (Ref #15)
15
Part #90156-GJ3-600
Screw,tapping 4x1 (Ref #15)
15
Part #90156-GJ3-600
Screw,tapping 4x1 (Ref #15)
15
Part #90156-GJ3-600
