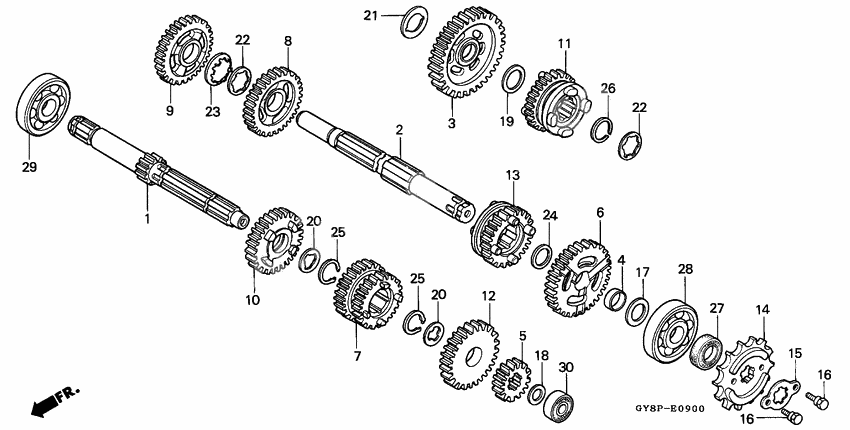

Трансмиссия
Трансмиссия
Shaft,main transm (Ref #1)
1
Part #23211-GY8-900
Countershaft, trans (Ref #2)
2
Part #23221-166-601
Gear comp.,counte (Ref #3)
3
Part #23420-GJ1-830
Втулка (Ref #4)
4
Part #23431-166-600
Gear,mainshaft se (Ref #5)
5
Part #23441-GJ1-830
Gear,countershaft (Ref #6)
6
Part #23451-GJ1-830
Gear,mainshaft th (Ref #7)
7
Part #23461-GJ1-830
Gear,countershaft (Ref #8)
8
Part #23471-GJ1-830
Gear,countershaft (Ref #9)
9
Part #23482-GJ1-830
Gear,mainshaft fi (Ref #10)
10
Part #23491-GJ1-830
Gear,countershaft (Ref #11)
11
Part #23501-GJ1-830
Gear,mainshaft si (Ref #12)
12
Part #23511-GJ1-830
Gear,countershaft (Ref #13)
13
Part #23515-GJ1-830
Sprocket,drive (Ref #14)
14
Part #23800-041-010
PLATE (Ref #15)
15
Part #23802-041-010
BOLT (Ref #16)
16
Part #90084-041-000
BOLT (Ref #16)
16
Part #90084-041-000
BOLT (Ref #16)
16
Part #90084-041-000
BOLT (Ref #16)
16
Part #90084-041-000
Washer, thrust, 17.2mm (Ref #17)
17
Part #90446-357-000
Washer, thrust, 12mm (Ref #18)
18
Part #90452-166-600
Washer, thrust, 16.5mm (Ref #19)
19
Part #90452-437-000
Шайба (Ref #20)
20
Part #90461-115-000
Шайба (Ref #20)
20
Part #90461-115-000
Шайба (Ref #20)
20
Part #90461-115-000
Шайба (Ref #20)
20
Part #90461-115-000
Шайба (Ref #21)
21
Part #90463-166-000
Washer a (19mm) (Ref #22)
22
Part #90464-166-000
Washer a (19mm) (Ref #22)
22
Part #90464-166-000
Washer a (19mm) (Ref #22)
22
Part #90464-166-000
Washer a (19mm) (Ref #22)
22
Part #90464-166-000
Washer, lock (19mm) (Ref #23)
23
Part #90465-166-600
Шайба (Ref #24)
24
Part #90466-166-600
Circlip, external, 17mm (Ref #25)
25
Part #90601-001-000
Circlip, external, 17mm (Ref #25)
25
Part #90601-001-000
Circlip, external, 17mm (Ref #25)
25
Part #90601-001-000
Circlip, external, 17mm (Ref #25)
25
Part #90601-001-000
Circlip (19mm) (Ref #26)
26
Part #90602-166-010
Oil seal, 17x28x7 (arai) (Ref #27)
27
Part #91201-415-013
Bearing, radial ball, 6303 (Ref #28)
28
Part #96100-6303000
Bearing (6303) (Ref #29)
29
Part #96120-6303000
Bearing (6001) (Ref #30)
30
Part #96140-6001000
