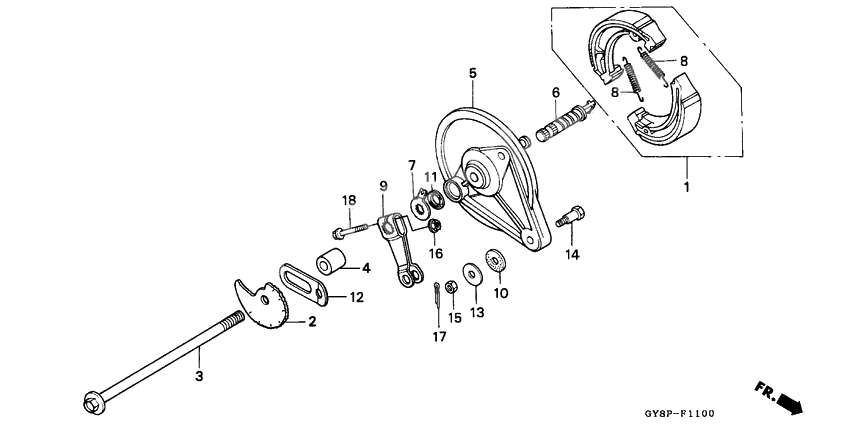

Rear brake panel
Rear brake panel
Shoe kit, brake (Ref #1)
1
Part #06430-GBJ-J10
Adjuster chain (Ref #2)
2
Part #40544-GJ1-830
Axle,rr wheel (Ref #3)
3
Part #42301-GJ1-610
Collar,panel side (Ref #4)
4
Part #42313-166-000
Panel comp*nh105* (Ref #5)
5
Part #43100-153-610ZB
Panel,rr.*nh-105* (Ref #5)
5
Part #43100-153-601ZA
Cam, rr. brake (Ref #6)
6
Part #43141-400-010
Indicator,rr.brk. (Ref #7)
7
Part #43145-GC5-000
Spring, brake shoe (Ref #8)
8
Part #43151-110-000
Spring, brake shoe (Ref #8)
8
Part #43151-110-000
Spring, brake shoe (Ref #8)
8
Part #43151-110-000
Spring, brake shoe (Ref #8)
8
Part #43151-110-000
Arm,rr.brake (Ref #9)
9
Part #43410-GC5-000
RUBBER (Ref #10)
10
Part #43434-286-000
Dust seal, brake cam (Ref #11)
11
Part #45134-250-000
Stopper,rear axle (Ref #12)
12
Part #52162-GJ1-000
Washer a (Ref #13)
13
Part #90524-030-000
Болт сквозное (Ref #14)
14
Part #9281110000
Гайка (Ref #15)
15
Part #94001-080-000-S
ナット (Ref #16)
16
Part #94050-06070
PIN (Ref #17)
17
Part #94201-20150
Bolt, flange, 6x32 (Ref #18)
18
Part #95701-0603207
