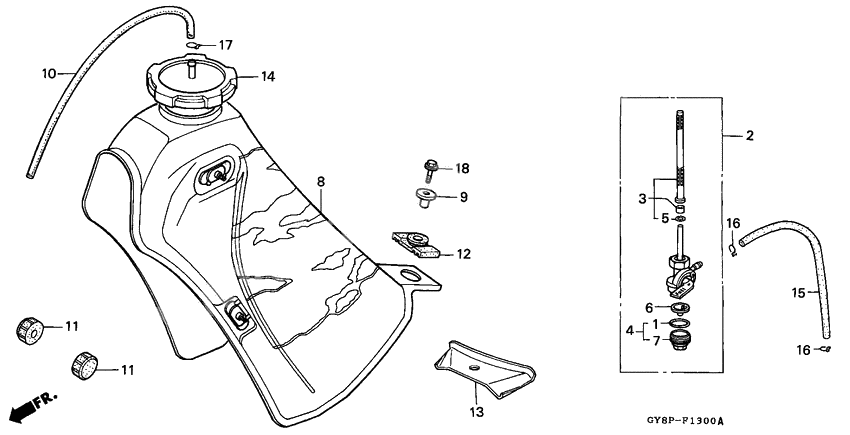

Tank fuel
Tank fuel
Packing, fuel strainer cup (Ref #1)
1
Part #16173-001-004
Cock assy.,fuel (Ref #2)
2
Part #16950-GY8-901
Screen fuel strain. (Ref #3)
3
Part #16952-GY8-900
O-ring, 9.0x1.3 (Ref #5)
5
Part #16958-397-771
Filter, cup (Ref #6)
6
Part #16959-471-831
Cup, fuel strainer (Ref #7)
7
Part #16967-GA6-671
Tank comp fuel nh1 (Ref #8)
8
Part #17510-GY8-900ZE
Tank comp fuel r134 (Ref #8)
8
Part #17510-GY8-900ZA
COLLAR (Ref #9)
9
Part #17525-KC5-000
TUBE (Ref #10)
10
Part #17530-437-000
Cushion,fr.tank (Ref #11)
11
Part #17611-KE1-000
Cushion,fr.tank (Ref #11)
11
Part #17611-KE1-000
Cushion,fr.tank (Ref #11)
11
Part #17611-KE1-000
Cushion,fr.tank (Ref #11)
11
Part #17611-KE1-000
Cushion,rr.fuel t (Ref #12)
12
Part #17613-KS3-900
Cov,tank under (Ref #13)
13
Part #17615-GJ1-000
Cap, fuel filler (Ref #14)
14
Part #17620-KE1-013
Tube, fuel, 4.5x90 (95001-45001-60m) (Ref #15)
15
Part #95001-450-904-0
CLIP (Ref #16)
16
Part #95002-02080
CLIP (Ref #16)
16
Part #95002-02080
CLIP (Ref #16)
16
Part #95002-02080
CLIP (Ref #16)
16
Part #95002-02080
CLIP (Ref #17)
17
Part #95002-50000
BOLT (Ref #18)
18
Part #95701-080-280-8
