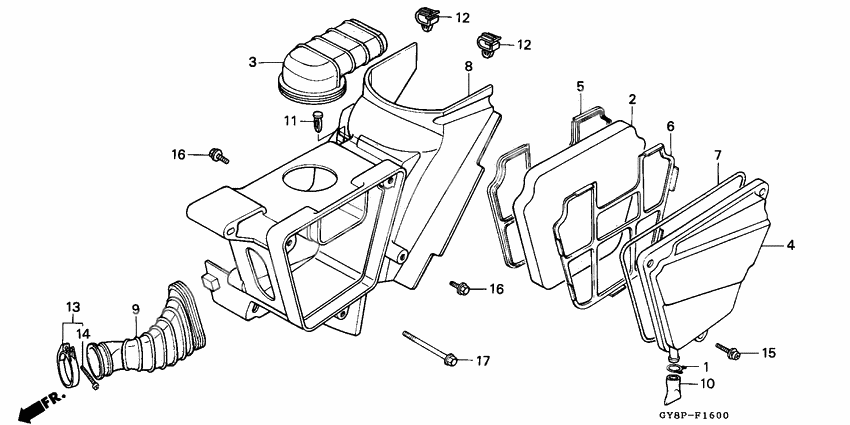

Воздушный фильтр
Воздушный фильтр
Clip, breather tube (Ref #1)
1
Part #15772-292-010
Element,air/c (Ref #2)
2
Part #17211-GJ1-000
Air/c.duct (Ref #3)
3
Part #17213-GJ1-610
Cover,air/c.case (Ref #4)
4
Part #17220-GJ1-000
Holder a element (Ref #5)
5
Part #17221-GY8-890
Holder b element (Ref #6)
6
Part #17222-GY8-890
Pag acr/c case (Ref #7)
7
Part #17226-GJ1-000
Case air/c (Ref #8)
8
Part #17230-GY8-900
Tube,air/c conn. (Ref #9)
9
Part #17253-GJ0-661
Трубка дренажная (Ref #10)
10
Part #17358-170-000
Canoe clip (Ref #11)
11
Part #32172-GF9-621
Clip b, harness (Ref #12)
12
Part #32172-GJ1-003
Clip b, harness (Ref #12)
12
Part #32172-GJ1-003
Clip b, harness (Ref #12)
12
Part #32172-GJ1-003
Clip b, harness (Ref #12)
12
Part #32172-GJ1-003
Band a (Ref #13)
13
Part #9501842250
Screw, pan, 4x25 (Ref #14)
14
Part #93500-040250G
Screw-washer, 5x20 (Ref #15)
15
Part #93891-0502007
BOLT (Ref #16)
16
Part #95701-060-100-8
BOLT (Ref #16)
16
Part #95701-060-100-8
BOLT (Ref #16)
16
Part #95701-060-100-8
BOLT (Ref #16)
16
Part #95701-060-100-8
BOLT (Ref #17)
17
Part #95701-060-600-8
