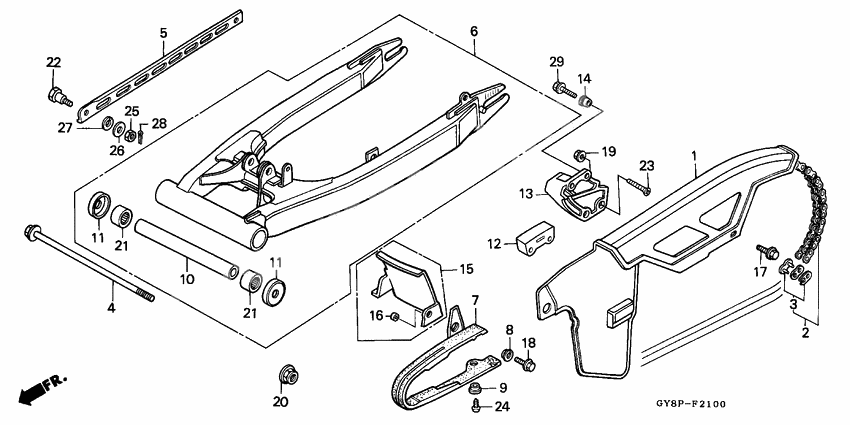

Swing arm/chain case
Swing arm/chain case
Case,drive chain (Ref #1)
1
Part #40510-GJ1-000
Chain,drive (Ref #2)
2
Part #40530-GJ1-612
Chain,drive did42 (Ref #2)
2
Part #40530-GJ1-611
Master link (Ref #3)
3
Part #40531-098-003
Axle,rr wheel (Ref #4)
4
Part #42301-GJ1-610
Arm rr.brake stopper (Ref #5)
5
Part #43431-GJ1-830
Swingarm a*type2* (Ref #6)
6
Part #52000-GY8-930ZB
Slider,chain (Ref #7)
7
Part #52107-GC5-000
Collar,slider (Ref #8)
8
Part #52108-GC5-000
Collar,chain (Ref #9)
9
Part #52108-KA8-000
Collar,rr.fork pi (Ref #10)
10
Part #52141-GY8-900
Dust seeal (Ref #11)
11
Part #52144-GF5-003
Dust seeal (Ref #11)
11
Part #52144-GF5-003
Dust seeal (Ref #11)
11
Part #52144-GF5-003
Dust seeal (Ref #11)
11
Part #52144-GF5-003
Slider,chain guid (Ref #12)
12
Part #52147-GJ1-761
GUIDE,DRIVE CHAIN (Ref #13)
13
Part #52156-GF9-621
Collar, chain guard (Ref #14)
14
Part #52157-GC5-000
Mudguard.rr.fork (Ref #15)
15
Part #80108-GJ1-000
Collar b, rr. fender (Ref #16)
16
Part #80108-MA6-000
Болт (Ref #17)
17
Part #90116-ME9-000
Болт (Ref #18)
18
Part #96001-0601002
Nut, u, 6mm (Ref #19)
19
Part #90301-473-003
Nut, flange, 12mm (Ref #20)
20
Part #90306-KF0-003
Bearing, rr. (Ref #21)
21
Part #91071-KS6-004
Bearing, rr. (Ref #21)
21
Part #91071-KS6-004
Bearing, rr. (Ref #21)
21
Part #91071-KS6-004
Bearing, rr. (Ref #21)
21
Part #91071-KS6-004
Bolt a, stopper arm (Ref #22)
22
Part #9281210000
Screw, flat (6x45) (Ref #23)
23
Part #93600-060450A
Болт (Ref #24)
24
Part #93901-36120
Гайка (Ref #25)
25
Part #94001-080-000-S
Шайба (Ref #26)
26
Part #94101-08000
Шайба (Ref #27)
27
Part #94111-10000
PIN (Ref #28)
28
Part #94201-20150
Болт (Ref #29)
29
Part #96300-0602000
