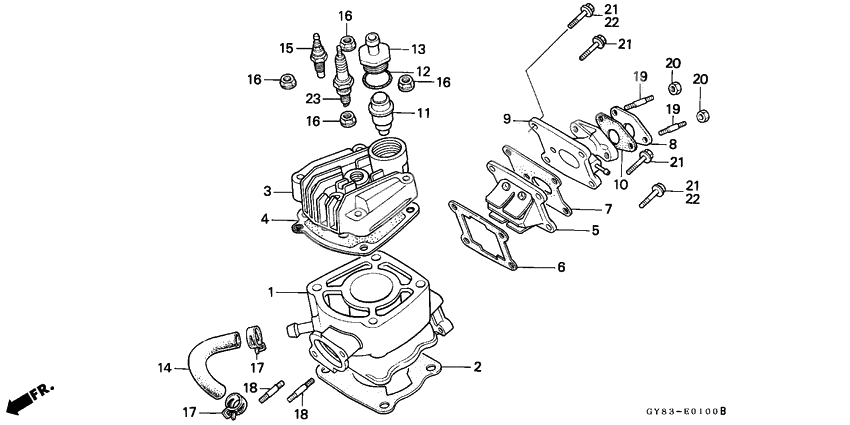

Cylinder/cylinder head
Cylinder/cylinder head
Cylinder comp. c (Ref #1)
1
Part #12130-GY8-900
Cylinder comp. b (Ref #1)
1
Part #12120-GY8-900
Cylinder comp. a (Ref #1)
1
Part #12110-GY8-900
Прокладка цилиндра (Ref #2)
2
Part #12191-GAS-901
Головка (Ref #3)
3
Part #12200-GY8-901
Прокладка (Ref #4)
4
Part #12251-GAS-901
Valve comp.,reed (Ref #5)
5
Part #14100-GY8-900
Прокладка клапана (Ref #6)
6
Part #14132-GT4-711
Gasket b, reed valve (Ref #7)
7
Part #14133-GT4-711
Pipe comp,inlet (Ref #9)
9
Part #17100-GY8-940
Thermostat assy (Ref #11)
11
Part #19300-GE2-003
Прокладка (Ref #12)
12
Part #91302-567-003
Cover,thermostat (Ref #13)
13
Part #19315-GY8-900
Hose a, water (Ref #14)
14
Part #19501-GT4-000
Thermo unit (Ref #15)
15
Part #37750-PC1-004
CLAMP (Ref #17)
17
Part #90682-SB0-671
CLAMP (Ref #17)
17
Part #90682-SB0-671
CLAMP (Ref #17)
17
Part #90682-SB0-671
CLAMP (Ref #17)
17
Part #90682-SB0-671
BOLT (Ref #18)
18
Part #92900-08022-1B
BOLT (Ref #18)
18
Part #92900-08022-1B
BOLT (Ref #18)
18
Part #92900-08022-1B
BOLT (Ref #18)
18
Part #92900-08022-1B
Болт заклепка (Ref #19)
19
Part #90032-399-000
Болт заклепка (Ref #19)
19
Part #90032-399-000
Болт заклепка (Ref #19)
19
Part #90032-399-000
Болт заклепка (Ref #19)
19
Part #90032-399-000
Гайка (Ref #20)
20
Part #94001-062-000-S
Гайка (Ref #20)
20
Part #94001-062-000-S
Гайка (Ref #20)
20
Part #94001-062-000-S
Гайка (Ref #20)
20
Part #94001-062-000-S
Bolt,one way 6x20 (Ref #22)
22
Part #90085-GE3-610
Bolt,one way 6x20 (Ref #22)
22
Part #90085-GE3-610
Bolt,one way 6x20 (Ref #22)
22
Part #90085-GE3-610
Bolt,one way 6x20 (Ref #22)
22
Part #90085-GE3-610
Spark plug (br7es) (Ref #23)
23
Part #9807957877
Plug,spark (br9ec (Ref #23)
23
Part #98079-59819
Plug,spark (br8ec (Ref #23)
23
Part #98079-58819
-
714133-GAA-000
Gasket b, reed valve
1Replaced by 14133-GT4-711 Доступно: Нет в наличии
