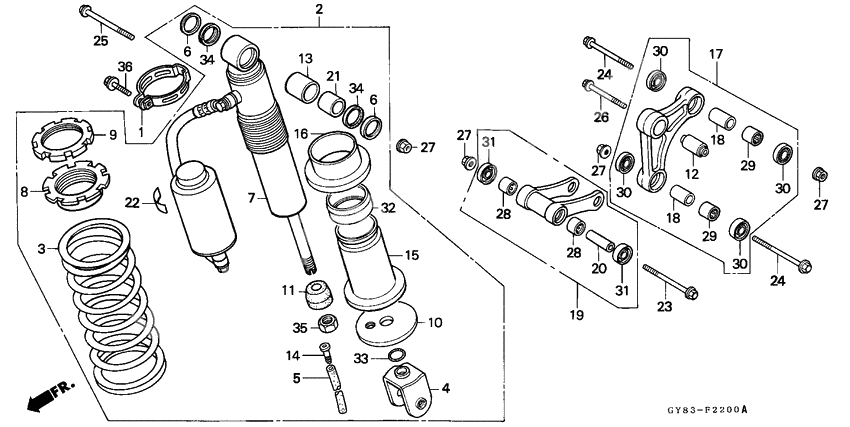

Rear cushion
Rear cushion
Band,sub tank (Ref #1)
1
Part #50252-KR6-000
Cushion ass*r134* (Ref #2)
2
Part #52400-GY8-901ZA
Spring,rr c*r134* (Ref #3)
3
Part #52401-GY8-901ZA
Metal,joint (Ref #4)
4
Part #52403-GC5-003
Pipe,drain (Ref #5)
5
Part #52405-GC5-003
Cap, dust seal (Ref #6)
6
Part #52406-KB7-003
Cap, dust seal (Ref #6)
6
Part #52406-KB7-003
Cap, dust seal (Ref #6)
6
Part #52406-KB7-003
Cap, dust seal (Ref #6)
6
Part #52406-KB7-003
Damper comp,rear (Ref #7)
7
Part #52410-GY8-901
ADJUSTER,SPRING (Ref #8)
8
Part #52422-GC4-701
NUT,ADJUSTER (Ref #9)
9
Part #52423-GC4-701
Stopper,spg.seat (Ref #10)
10
Part #52424-GC5-003
RUBBER,STOPPER (Ref #11)
11
Part #52427-GW6-003
Bush,damper lower (Ref #12)
12
Part #52451-GC5-000
Bush, shock (upper) (Ref #13)
13
Part #52452-KB7-003
Соединение трубы (Ref #14)
14
Part #52456-KB7-003
Guide comp,spring (Ref #15)
15
Part #52458-GY8-901
Seat c,spring (Ref #16)
16
Part #52459-GC5-003
Arm assy cushion (Ref #17)
17
Part #52460-GY8-900
Collar,cush.arm (Ref #18)
18
Part #52462-GY8-900
Collar,cush.arm (Ref #18)
18
Part #52462-GY8-900
Collar,cush.arm (Ref #18)
18
Part #52462-GY8-900
Collar,cush.arm (Ref #18)
18
Part #52462-GY8-900
Rod assy cushion con (Ref #19)
19
Part #52470-GY8-900
Collor cushion co (Ref #20)
20
Part #52473-GY8-900
Colr, shock (upper) (Ref #21)
21
Part #52486-KB7-003
Label, rr. (Ref #22)
22
Part #87516-MBL-610
Bolt, flg (10x114) (Ref #23)
23
Part #90105-GJ1-000
Болт (Ref #24)
24
Part #90128-GE2-000
Болт (Ref #24)
24
Part #90128-GE2-000
Болт (Ref #24)
24
Part #90128-GE2-000
Болт (Ref #24)
24
Part #90128-GE2-000
Болт (Ref #25)
25
Part #90152-GC5-000
Болт (Ref #26)
26
Part #90153-MC4-003
BEARING,NEEDLE (Ref #28)
28
Part #91071-KY7-003
BEARING,NEEDLE (Ref #28)
28
Part #91071-KY7-003
BEARING,NEEDLE (Ref #28)
28
Part #91071-KY7-003
BEARING,NEEDLE (Ref #28)
28
Part #91071-KY7-003
Needle brg (Ref #29)
29
Part #91079-GC4-831
Needle brg (Ref #29)
29
Part #91079-GC4-831
Needle brg (Ref #29)
29
Part #91079-GC4-831
Needle brg (Ref #29)
29
Part #91079-GC4-831
DUST SEAL (Ref #31)
31
Part #91251-KY7-003
DUST SEAL (Ref #31)
31
Part #91251-KY7-003
DUST SEAL (Ref #31)
31
Part #91251-KY7-003
DUST SEAL (Ref #31)
31
Part #91251-KY7-003
Уплотнение (Ref #32)
32
Part #91254-GC5-003
Прокладка (Ref #33)
33
Part #91256-GC5-003
Dust seal b (Ref #34)
34
Part #91351-KB7-003
Dust seal b (Ref #34)
34
Part #91351-KB7-003
Dust seal b (Ref #34)
34
Part #91351-KB7-003
Dust seal b (Ref #34)
34
Part #91351-KB7-003
Гайка (Ref #35)
35
Part #94002-120-000-S
Болт (Ref #36)
36
Part #96300-0602200
