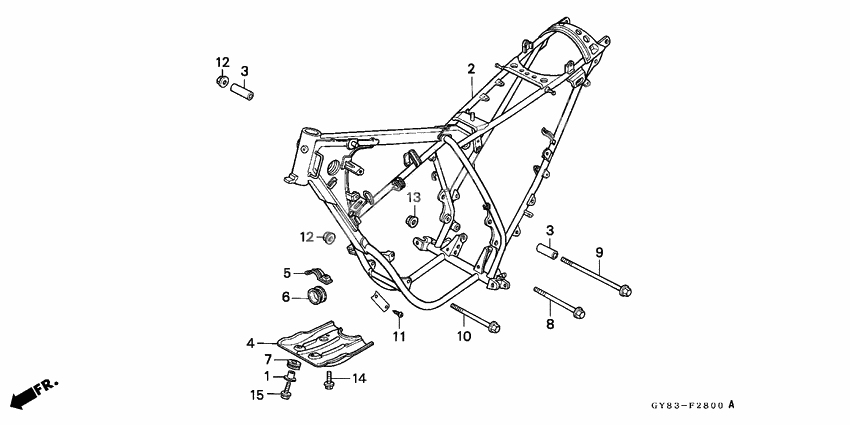

Frame body
Frame body
COLLAR (Ref #1)
1
Part #19052-KV0-000
Body comp. frame nh1 (Ref #2)
2
Part #50100-GY8-920ZC
COLLAR (Ref #3)
3
Part #50311-GJ1-000
COLLAR (Ref #3)
3
Part #50311-GJ1-000
COLLAR (Ref #3)
3
Part #50311-GJ1-000
COLLAR (Ref #3)
3
Part #50311-GJ1-000
Plate,skid*nh35m* (Ref #4)
4
Part #50351-GJ1-000ZE
Clamp,skid*nh-35m (Ref #5)
5
Part #50352-GC5-000ZC
Rubber protec.body f (Ref #6)
6
Part #50353-GC5-000
Rubber, rr. fender cushion (Ref #7)
7
Part #80101-283-000
Bolt,flg 10x110 (Ref #8)
8
Part #90105-MG3-000
Bolt flange dr 8x (Ref #9)
9
Part #90112-GY8-900
Болт (Ref #10)
10
Part #90113-GY8-900
Голвка вилта (Ref #11)
11
Part #90841-001-000
Гайка (Ref #12)
12
Part #94050-08000
Гайка (Ref #12)
12
Part #94050-08000
Гайка (Ref #12)
12
Part #94050-08000
Гайка (Ref #12)
12
Part #94050-08000
Гайка (Ref #13)
13
Part #94050-10000
BOLT (Ref #14)
14
Part #95701-060-120-7
BOLT (Ref #15)
15
Part #95701-060-200-7
