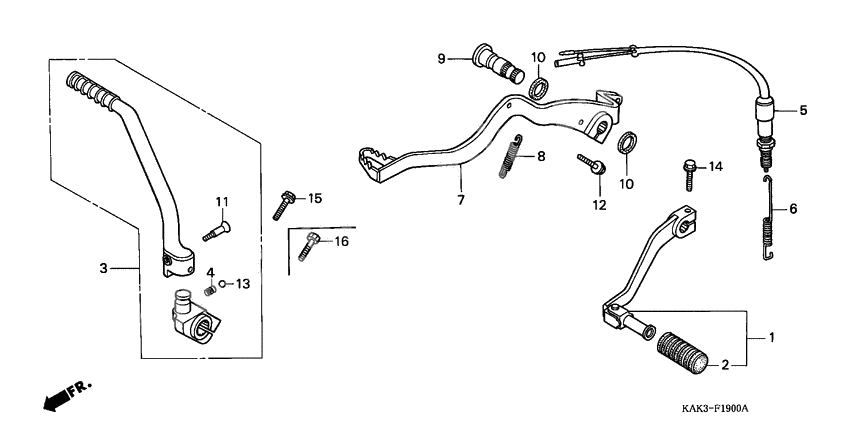

Brake pedal assy
Brake pedal assy
Pedal assy.,chang (Ref #1)
1
Part #24700-KAK-700
Rubber, change pedal (Ref #2)
2
Part #24781-KE1-000
Arm assy.,kick st (Ref #3)
3
Part #28300-KAK-900
Spring,kick start (Ref #4)
4
Part #28333-KS3-900
Switch assy.,rr.s (Ref #5)
5
Part #35350-KAK-900
Spring,stop switc (Ref #6)
6
Part #35357-KAK-900
Pedal comp.,brake (Ref #7)
7
Part #46500-KAK-700
Spring, brake pedal (Ref #8)
8
Part #46514-GW8-670
Shaft,rr.brake (Ref #9)
9
Part #46515-KAK-901
DUST SEAL (Ref #10)
10
Part #46525-KK0-003
DUST SEAL (Ref #10)
10
Part #46525-KK0-003
DUST SEAL (Ref #10)
10
Part #46525-KK0-003
DUST SEAL (Ref #10)
10
Part #46525-KK0-003
Bolt, kick arm (Ref #11)
11
Part #90101-329-000
Болт (Ref #12)
12
Part #90102-KV3-700
Ball (Ref #13)
13
Part #96211-08000
Болт (Ref #14)
14
Part #96300-0602000
Bolt, hex., 8x25 (Ref #16)
16
Part #92101-08025-0A
