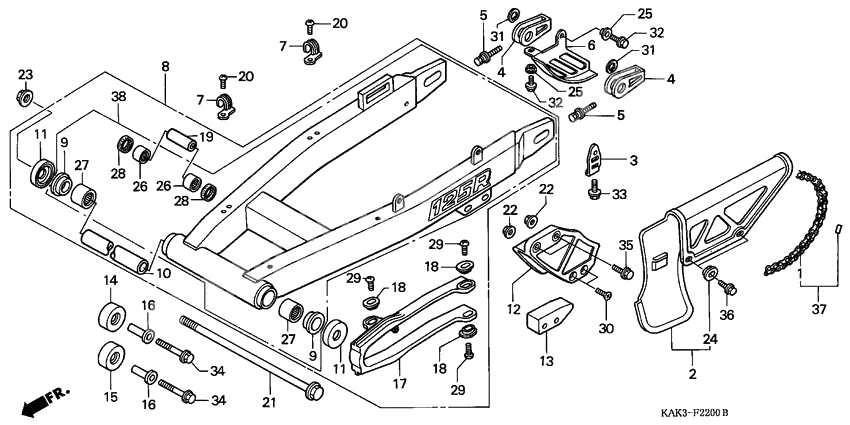

Rear fork
Rear fork
Case comp.,drive (Ref #2)
2
Part #40510-KAK-760
Stay,chain case (Ref #3)
3
Part #40512-KAK-900
ADJUSTER,CHAIN (Ref #4)
4
Part #40543-KAK-900
ADJUSTER,CHAIN (Ref #4)
4
Part #40543-KAK-900
ADJUSTER,CHAIN (Ref #4)
4
Part #40543-KAK-900
ADJUSTER,CHAIN (Ref #4)
4
Part #40543-KAK-900
Bolt,chain adjust (Ref #5)
5
Part #40544-KW3-000
Bolt,chain adjust (Ref #5)
5
Part #40544-KW3-000
Bolt,chain adjust (Ref #5)
5
Part #40544-KW3-000
Bolt,chain adjust (Ref #5)
5
Part #40544-KW3-000
Cover,rr.disk (Ref #6)
6
Part #43330-KAK-900
Guide, rr. (Ref #7)
7
Part #43468-KAE-000
Guide, rr. (Ref #7)
7
Part #43468-KAE-000
Guide, rr. (Ref #7)
7
Part #43468-KAE-000
Guide, rr. (Ref #7)
7
Part #43468-KAE-000
Swingarm,a*type2* (Ref #8)
8
Part #52100-KAK-700ZB
Bush, pivot thrust (Ref #9)
9
Part #52109-430-300
Bush, pivot thrust (Ref #9)
9
Part #52109-430-300
Bush, pivot thrust (Ref #9)
9
Part #52109-430-300
Bush, pivot thrust (Ref #9)
9
Part #52109-430-300
Collar,swing arm( (Ref #10)
10
Part #52141-KAK-900
Cap, dust seal (Ref #11)
11
Part #52144-356-005
Cap, dust seal (Ref #11)
11
Part #52144-356-005
Cap, dust seal (Ref #11)
11
Part #52144-356-005
Cap, dust seal (Ref #11)
11
Part #52144-356-005
Guide,chain (Ref #12)
12
Part #52146-KV6-010
Slider,chain guid (Ref #13)
13
Part #52147-KV6-010
Ролик (Ref #14)
14
Part #52158-HC0-000
ROLLER,CHAIN (Ref #15)
15
Part #52158-KAK-900
Collar, chain roller (Ref #16)
16
Part #52159-467-000
Collar, chain roller (Ref #16)
16
Part #52159-467-000
Collar, chain roller (Ref #16)
16
Part #52159-467-000
Collar, chain roller (Ref #16)
16
Part #52159-467-000
Slider,chain (Ref #17)
17
Part #52170-KAK-900
Collar,cushion ar (Ref #19)
19
Part #52463-KAK-900
Screw, pan (5x10) (Ref #20)
20
Part #90104-ML7-920
Screw, pan (5x10) (Ref #20)
20
Part #90104-ML7-920
Screw, pan (5x10) (Ref #20)
20
Part #90104-ML7-920
Screw, pan (5x10) (Ref #20)
20
Part #90104-ML7-920
Bolt,rr.fork pivo (Ref #21)
21
Part #90121-MN9-000
Nut, u, 6mm (Ref #22)
22
Part #90301-473-003
Nut, u, 6mm (Ref #22)
22
Part #90301-473-003
Nut, u, 6mm (Ref #22)
22
Part #90301-473-003
Nut, u, 6mm (Ref #22)
22
Part #90301-473-003
Nut, u (14mm) (Ref #23)
23
Part #90305-GE8-003
Washer, 6x9 (Ref #24)
24
Part #90513-405-000
Washer, fr (Ref #25)
25
Part #90556-044-000
Washer, fr (Ref #25)
25
Part #90556-044-000
Washer, fr (Ref #25)
25
Part #90556-044-000
Washer, fr (Ref #25)
25
Part #90556-044-000
BEARING (Ref #26)
26
Part #91106-383-003
BEARING (Ref #26)
26
Part #91106-383-003
BEARING (Ref #26)
26
Part #91106-383-003
BEARING (Ref #26)
26
Part #91106-383-003
BEARING,NEEDLE (Ref #27)
27
Part #91070-KAK-900
BEARING,NEEDLE (Ref #27)
27
Part #91070-KAK-900
BEARING,NEEDLE (Ref #27)
27
Part #91070-KAK-900
BEARING,NEEDLE (Ref #27)
27
Part #91070-KAK-900
Seal,pivot dust (Ref #28)
28
Part #91262-MB2-005
Seal,pivot dust (Ref #28)
28
Part #91262-MB2-005
Seal,pivot dust (Ref #28)
28
Part #91262-MB2-005
Seal,pivot dust (Ref #28)
28
Part #91262-MB2-005
Screw,flat 6x50 (Ref #30)
30
Part #93600-060-500-A
Circlip (10mm) (Ref #31)
31
Part #9451110000
Circlip (10mm) (Ref #31)
31
Part #9451110000
Circlip (10mm) (Ref #31)
31
Part #9451110000
Circlip (10mm) (Ref #31)
31
Part #9451110000
BOLT (Ref #32)
32
Part #95701-060-120-0
BOLT (Ref #32)
32
Part #95701-060-120-0
BOLT (Ref #32)
32
Part #95701-060-120-0
BOLT (Ref #32)
32
Part #95701-060-120-0
BOLT (Ref #33)
33
Part #96001-060-160-0
Болт (Ref #34)
34
Part #96300-0803500
Болт (Ref #34)
34
Part #96300-0803500
Болт (Ref #34)
34
Part #96300-0803500
Болт (Ref #34)
34
Part #96300-0803500
Болт (Ref #35)
35
Part #96300-0601600
Болт (Ref #36)
36
Part #96300-0601007
Chain set,drive (Ref #37)
37
Part #40550-KAK-405
