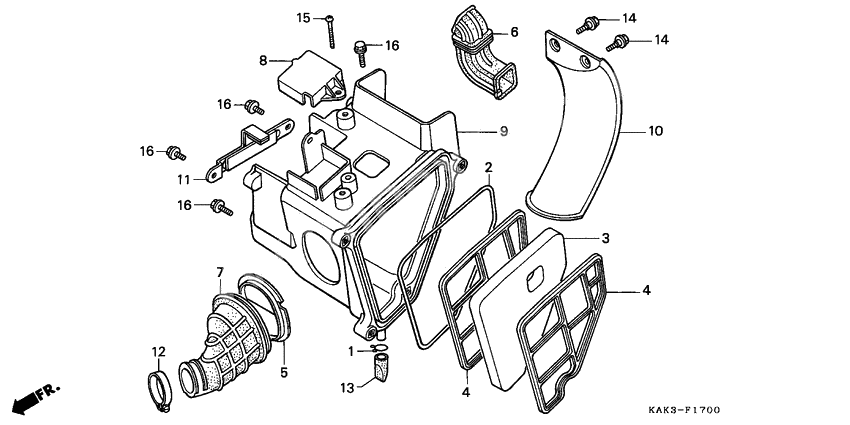

Воздушный фильтр
Воздушный фильтр
Clip, breather tube (Ref #1)
1
Part #15772-292-010
Seal,air/c cover (Ref #2)
2
Part #17212-KAK-900
Element,air clean (Ref #3)
3
Part #17213-KAK-900
Держатель элемента (Ref #4)
4
Part #17214-KAK-900
Держатель элемента (Ref #4)
4
Part #17214-KAK-900
Держатель элемента (Ref #4)
4
Part #17214-KAK-900
Держатель элемента (Ref #4)
4
Part #17214-KAK-900
Plate comp.,eleme (Ref #5)
5
Part #17216-KAK-900
Duct air inlet (Ref #6)
6
Part #17218-KAK-900
Tube air/c conn (Ref #7)
7
Part #17222-KAK-900
Cover,coupler (Ref #8)
8
Part #17226-KAK-900
Case comp.,air cl (Ref #9)
9
Part #17230-KAK-900
Mudguard,air clea (Ref #10)
10
Part #17245-KAK-900
Лента аккумулятора (Ref #11)
11
Part #17250-KAK-900
Band,air/c conn.t (Ref #12)
12
Part #17255-KY4-770
Трубка дренажная (Ref #13)
13
Part #17358-170-000
BOLT (Ref #14)
14
Part #90111-162-000
BOLT (Ref #14)
14
Part #90111-162-000
BOLT (Ref #14)
14
Part #90111-162-000
BOLT (Ref #14)
14
Part #90111-162-000
Болт (Ref #15)
15
Part #93500-050-080-A
