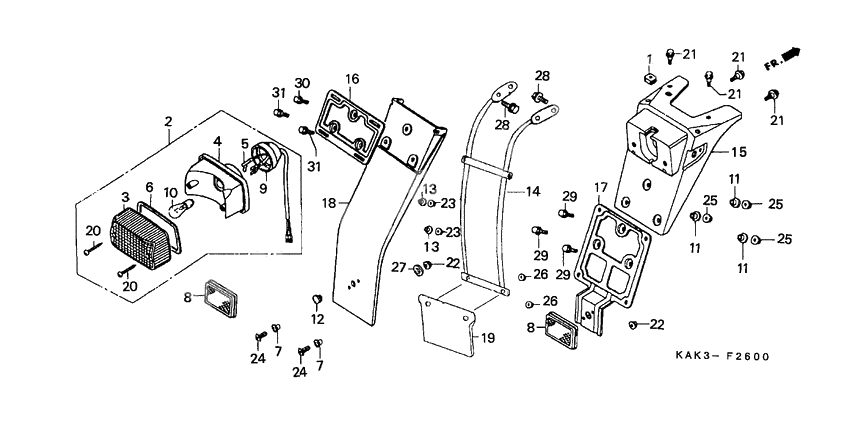

Taillight unit ass`y
Taillight unit ass`y
Grommet, cord (Ref #1)
1
Part #31512-ZG3-000
Taillight unit (Ref #2)
2
Part #33701-KAK-902
Lens,taillight (Ref #3)
3
Part #33702-KAK-902
Base comp.,tailli (Ref #4)
4
Part #33704-KAK-901
Cord comp.,tailli (Ref #5)
5
Part #33708-KAK-901
Packing,taillight (Ref #6)
6
Part #33709-KAK-900
Reflector,reflex (Ref #8)
8
Part #33741-KY4-901
Reflector,reflex (Ref #8)
8
Part #33741-KY4-901
Reflector,reflex (Ref #8)
8
Part #33741-KY4-901
Reflector,reflex (Ref #8)
8
Part #33741-KY4-901
Cover rubber (Ref #9)
9
Part #33780-KR1-761
Bulb (12v21/5w) (Ref #10)
10
Part #34906-447-711
Bracket,taillight (Ref #15)
15
Part #84701-KAK-900
Bracket,number pl (Ref #17)
17
Part #84703-KAK-900
Screw,tapping,4x2 (Ref #20)
20
Part #90104-KAK-901
Screw,tapping,4x2 (Ref #20)
20
Part #90104-KAK-901
Screw,tapping,4x2 (Ref #20)
20
Part #90104-KAK-901
Screw,tapping,4x2 (Ref #20)
20
Part #90104-KAK-901
Nut,flange,6mm (Ref #22)
22
Part #90302-KL8-710
Nut,flange,6mm (Ref #22)
22
Part #90302-KL8-710
Nut,flange,6mm (Ref #22)
22
Part #90302-KL8-710
Nut,flange,6mm (Ref #22)
22
Part #90302-KL8-710
