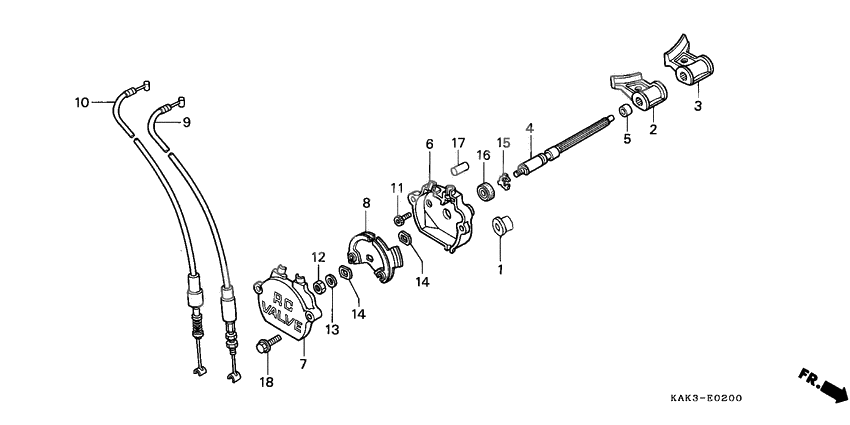

Exhaust valve
Exhaust valve
CAP (Ref #1)
1
Part #12205-KAK-900
Valve,r.flap (Ref #2)
2
Part #14201-KAK-900
Клапан (Ref #3)
3
Part #14202-KAK-900
Shaft,flap valve. (Ref #4)
4
Part #14211-KAK-901
Collar (6.6) (Ref #5)
5
Part #14231-KV3-000
Base,cable guide (Ref #6)
6
Part #14301-KAK-900
Cap,cable guide (Ref #7)
7
Part #14302-KAK-900
Plate comp.,cable (Ref #8)
8
Part #14320-KAK-900
Cable comp.a,valv (Ref #9)
9
Part #14330-KAK-900
Cable comp b,valv (Ref #10)
10
Part #14340-KAK-901
Bolt, socket (6x16) (Ref #11)
11
Part #90036-KY4-900
Nut,control rod (Ref #12)
12
Part #90310-634-980
Шайба (Ref #13)
13
Part #90437-GM0-000
Washer,valve shaf (Ref #14)
14
Part #90555-KV3-000
Washer,valve shaf (Ref #14)
14
Part #90555-KV3-000
Washer,valve shaf (Ref #14)
14
Part #90555-KV3-000
Washer,valve shaf (Ref #14)
14
Part #90555-KV3-000
E ring,special,7m (Ref #15)
15
Part #90601-KV3-000
Сальник (Ref #16)
16
Part #91201-PA9-004
Dowel pin (Ref #17)
17
Part #94303-05080
BOLT (Ref #18)
18
Part #96001-060-160-0
