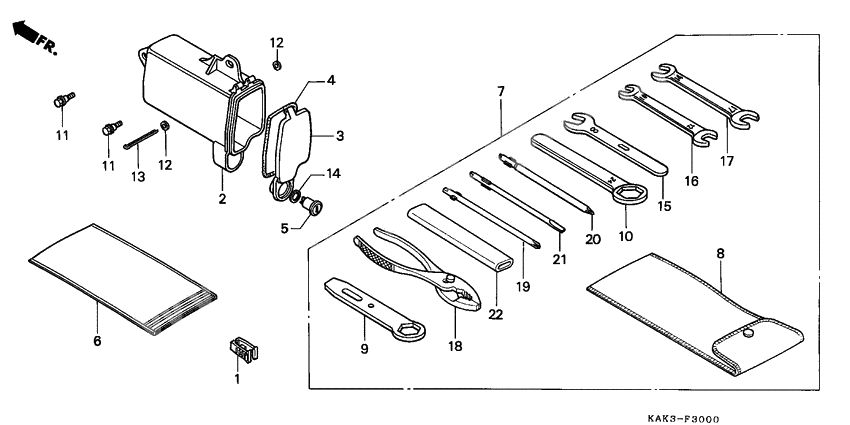

Tools
Tools
Съёмник мини предохранитель (Ref #1)
1
Part #38235-SA5-004
BOX,TOOL (Ref #2)
2
Part #83501-KAK-900
Cap,tool box (Ref #3)
3
Part #83504-KAK-900
Seal,tool box (Ref #4)
4
Part #83505-KAK-900
Lock,tool box (Ref #5)
5
Part #83506-KAK-901
Bag,owners manual (Ref #6)
6
Part #83642-KAK-900
Tool set (Ref #7)
7
Part #89010-KAK-900
Bag, tool (170) (Ref #8)
8
Part #89101-965-003
Wrench,spark plug (Ref #9)
9
Part #89216-KV3-770
Wrench,eye,24 (Ref #10)
10
Part #89223-MM9-000
Болт (Ref #11)
11
Part #90116-ME9-000
Болт (Ref #11)
11
Part #90116-ME9-000
Болт (Ref #11)
11
Part #90116-ME9-000
Болт (Ref #11)
11
Part #90116-ME9-000
Washer, plain, 3mm (Ref #12)
12
Part #9410103000
Washer, plain, 3mm (Ref #12)
12
Part #9410103000
Washer, plain, 3mm (Ref #12)
12
Part #9410103000
Washer, plain, 3mm (Ref #12)
12
Part #9410103000
Штифт (Ref #13)
13
Part #9420130450
Circlip, external, 22mm (Ref #14)
14
Part #94511-22000
Spanner, 8 (Ref #15)
15
Part #9900108000
Spanner (Ref #16)
16
Part #99001-10120
Spanner (Ref #17)
17
Part #99001-14170
Клещи (Ref #18)
18
Part #89210-GBJ-J10
Инструмент для завинчивания отвертка (Ref #19)
19
Part #99003-10000
Driver 2, plus screw (no.3) (Ref #20)
20
Part #9900320000
Инструмент для завинчивания отвертка (Ref #21)
21
Part #99003-30000
Handle (12mm) (Ref #22)
22
Part #99006-12000
