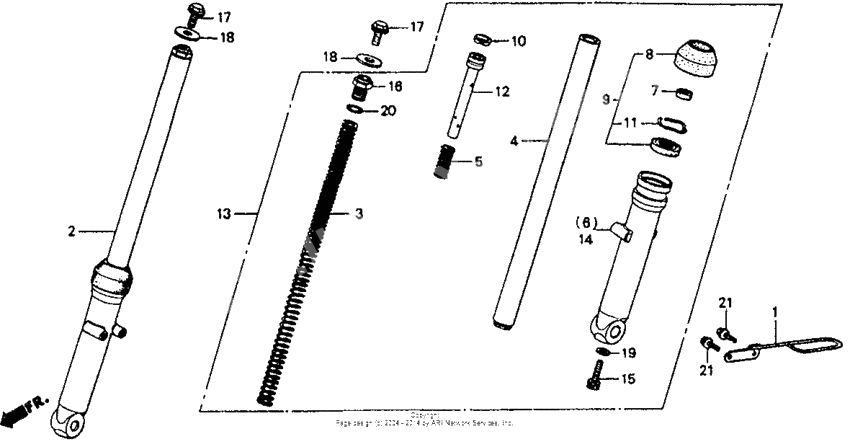

Front fork
Front fork
Guide, brake cable (Ref #1)
1
Part #45465-GAN-670
Fork assy,r.fr (Ref #2)
2
Part #51400-126-772
Spring,fr.fork (Ref #3)
3
Part #51401-126-771
Pipe comp.,fr.for (Ref #4)
4
Part #51410-126-771
SPRING,REBOUND (Ref #5)
5
Part #51412-088-931
Case,r.fr.bottom (Ref #6)
6
Part #51421-126-771
Seat,bottom (Ref #7)
7
Part #51424-065-901
Уплотнение (Ref #8)
8
Part #51425-GM0-003
Отсутствующе (Ref #9)
9
Part #51433-GM0-305
RING,PISTON (Ref #10)
10
Part #51437-065-901
Ring,oil seal sto (Ref #11)
11
Part #51466-098-901
PIPE,SEAT (Ref #12)
12
Part #51470-126-771
Fork assy.,l.fr. (Ref #13)
13
Part #51500-126-772
Case,l.fr.bottom (Ref #14)
14
Part #51521-126-771
Bolt, socket (8mm) (Ref #15)
15
Part #90116-383-721
BOLT,FORK (Ref #16)
16
Part #90123-126-771
Болт (Ref #17)
17
Part #90130-126-900
Болт (Ref #17)
17
Part #90130-126-900
Болт (Ref #17)
17
Part #90130-126-900
Болт (Ref #17)
17
Part #90130-126-900
Washer, plain, 10.3mm (Ref #18)
18
Part #90527-230-000
Washer, plain, 10.3mm (Ref #18)
18
Part #90527-230-000
Washer, plain, 10.3mm (Ref #18)
18
Part #90527-230-000
Washer, plain, 10.3mm (Ref #18)
18
Part #90527-230-000
Шайба (Ref #19)
19
Part #90544-283-000
Прокладка (Ref #20)
20
Part #91356-065-901
BOLT (Ref #21)
21
Part #95701-060-120-7
BOLT (Ref #21)
21
Part #95701-060-120-7
BOLT (Ref #21)
21
Part #95701-060-120-7
BOLT (Ref #21)
21
Part #95701-060-120-7
