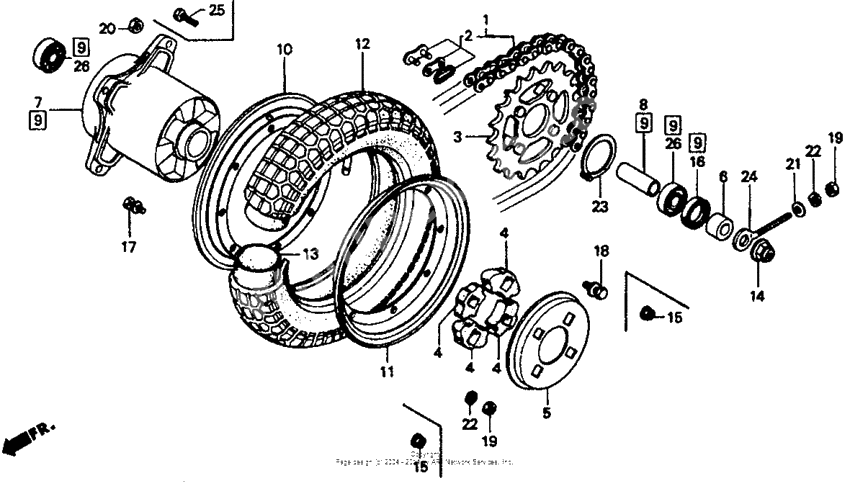

Rear wheel
Rear wheel
Цепь (Ref #1)
1
Part #405W3-GB2-505
Master link (Ref #2)
2
Part #40531-098-003
Sprocket,driven (Ref #3)
3
Part #41201-126-920
Крышка (Ref #5)
5
Part #41245-051-000
Collar,rear wheel (Ref #6)
6
Part #42304-098-000
Hub,rr.whe*nh196* (Ref #7)
7
Part #42601-098-010ZC
Collar,rear,axle (Ref #8)
8
Part #42620-098-000
Rim, r. *nh196* (Ref #10)
10
Part #42701-GAN-771ZA
Rim, l. *nh196* (Ref #11)
11
Part #42702-GAN-771ZA
Tire (bs) (Ref #12)
12
Part #42711-098-166
Tube,wheel (Ref #13)
13
Part #42712-098-691
Nut, flange, 12mm (Ref #14)
14
Part #90306-KF0-003
Nut, flange (self-lock) (m8x1.25) (Ref #15)
15
Part #90309-428-731
Nut, flange (self-lock) (m8x1.25) (Ref #15)
15
Part #90309-428-731
Nut, flange (self-lock) (m8x1.25) (Ref #15)
15
Part #90309-428-731
Nut, flange (self-lock) (m8x1.25) (Ref #15)
15
Part #90309-428-731
Bolt, flange, 8x16 (Ref #17)
17
Part #95701-0801600
Гайка (Ref #19)
19
Part #94001-062-000-S
Гайка (Ref #19)
19
Part #94001-062-000-S
Гайка (Ref #19)
19
Part #94001-062-000-S
Гайка (Ref #19)
19
Part #94001-062-000-S
Шайба (Ref #21)
21
Part #94101-06800
Шайба (Ref #22)
22
Part #94111-06000
Шайба (Ref #22)
22
Part #94111-06000
Шайба (Ref #22)
22
Part #94111-06000
Шайба (Ref #22)
22
Part #94111-06000
Circlip (50mm) (Ref #23)
23
Part #9451150000
Adjuster s, r. chain (Ref #24)
24
Part #9501410010
Bolt,hex.,8x25 (Ref #25)
25
Part #95201-080-250-0
Bearing (6301u) (Ref #26)
26
Part #96140-6301010
Bearing (6301u) (Ref #26)
26
Part #96140-6301010
Bearing (6301u) (Ref #26)
26
Part #96140-6301010
Bearing (6301u) (Ref #26)
26
Part #96140-6301010
