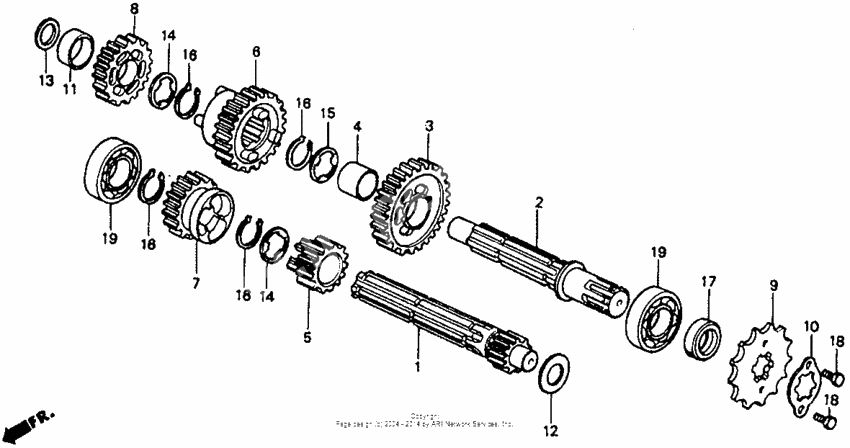

Трансмиссия
Трансмиссия
Mainshaft (11t) (Ref #1)
1
Part #23211-041-020
Countershaft, trans (Ref #2)
2
Part #23221-041-050
Шестерня (Ref #3)
3
Part #23421-086-020
COLLAR (Ref #4)
4
Part #23422-041-000
Шестерня (Ref #5)
5
Part #23431-040-070
Шестерня (Ref #6)
6
Part #23441-086-010
Шестерня (Ref #7)
7
Part #23471-041-050
Шестерня (Ref #8)
8
Part #23481-086-010
Звездочка (Ref #9)
9
Part #23800-098-000
PLATE (Ref #10)
10
Part #23802-040-000
Collar, gear (Ref #11)
11
Part #23911-041-020
Шайба (Ref #12)
12
Part #90451-121-000
Шайба (Ref #13)
13
Part #90451-141-000
Шайба (Ref #14)
14
Part #90461-035-000
Шайба (Ref #14)
14
Part #90461-035-000
Шайба (Ref #14)
14
Part #90461-035-000
Шайба (Ref #14)
14
Part #90461-035-000
Washer b (17mm) (Ref #15)
15
Part #90462-035-000
Oil seal (17x29x5) (Ref #17)
17
Part #91203-GBG-900
BOLT (Ref #18)
18
Part #90084-041-000
BOLT (Ref #18)
18
Part #90084-041-000
BOLT (Ref #18)
18
Part #90084-041-000
BOLT (Ref #18)
18
Part #90084-041-000
Bearing, radial ball, 6203 (Ref #19)
19
Part #96100-6203000
Bearing, radial ball, 6203 (Ref #19)
19
Part #96100-6203000
Bearing, radial ball, 6203 (Ref #19)
19
Part #96100-6203000
Bearing, radial ball, 6203 (Ref #19)
19
Part #96100-6203000
