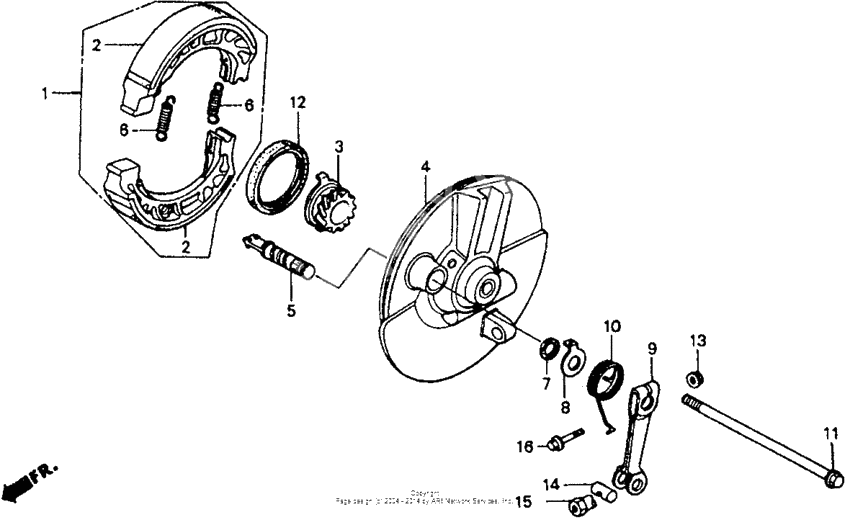

Front brake panel
Front brake panel
Shoe kit, brake (Ref #1)
1
Part #06430-KS3-921
GEAR,SPEEDOMETER (Ref #3)
3
Part #44804-098-950
Panel sub *nh196* (Ref #4)
4
Part #45010-GAN-305ZA
Cam,front brake (Ref #5)
5
Part #45131-400-020
Spring, brake shoe (Ref #6)
6
Part #45133-028-000
Spring, brake shoe (Ref #6)
6
Part #45133-028-000
Spring, brake shoe (Ref #6)
6
Part #45133-028-000
Spring, brake shoe (Ref #6)
6
Part #45133-028-000
Dust seal, brake cam (Ref #7)
7
Part #45134-250-000
Indicater,fr.brak (Ref #8)
8
Part #45145-126-900
Arm,fr.brake (Ref #9)
9
Part #45410-GAN-670
Пружина (Ref #10)
10
Part #45435-GB2-720
Bolt, swingarm pivot (Ref #11)
11
Part #90121-GS3-000
Dust seal,47x57x7 (Ref #12)
12
Part #91251-GN5-901
Гайка (Ref #13)
13
Part #94050-06000
Joint b, brake arm (Ref #14)
14
Part #9501532001
Nut b, brake rod adjusting (Ref #15)
15
Part #9501542000
Bolt, flange, 6x28 (Ref #16)
16
Part #95701-0602800
