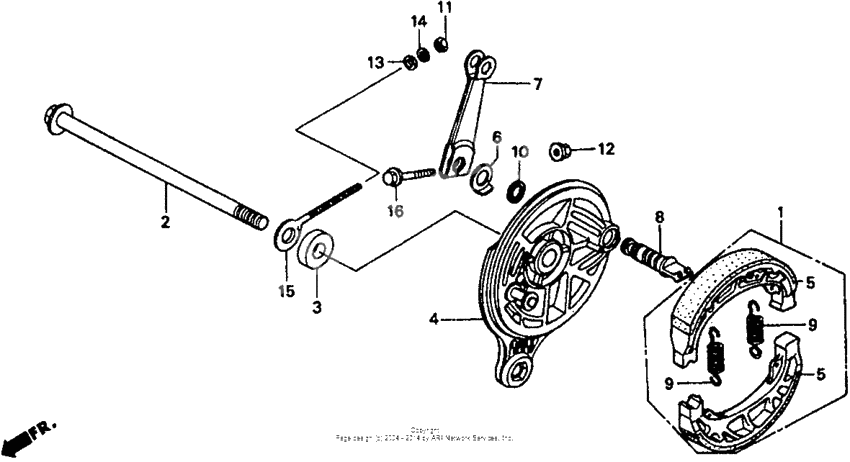

Rear brake panel
Rear brake panel
Shoe kit, brake (Ref #1)
1
Part #06430-KS3-921
Axle, rr. wheel (Ref #2)
2
Part #42301-126-850
Collar,panel side (Ref #3)
3
Part #42313-098-000
Panel,rr.b*nh196* (Ref #4)
4
Part #43100-126-721ZB
Indicator,rr. (Ref #6)
6
Part #43145-098-860
Arm,rr.brake (Ref #7)
7
Part #43410-GAN-670
Cam,front brake (Ref #8)
8
Part #45131-400-020
Spring, brake shoe (Ref #9)
9
Part #45133-028-000
Spring, brake shoe (Ref #9)
9
Part #45133-028-000
Spring, brake shoe (Ref #9)
9
Part #45133-028-000
Spring, brake shoe (Ref #9)
9
Part #45133-028-000
Dust seal, brake cam (Ref #10)
10
Part #45134-250-000
Гайка (Ref #11)
11
Part #94001-062-000-S
Гайка (Ref #12)
12
Part #94050-06000
Шайба (Ref #13)
13
Part #94101-06800
Шайба (Ref #14)
14
Part #94111-06000
Adjuster s, r. chain (Ref #15)
15
Part #9501410010
Bolt, flange, 6x32 (Ref #16)
16
Part #95701-0603200
