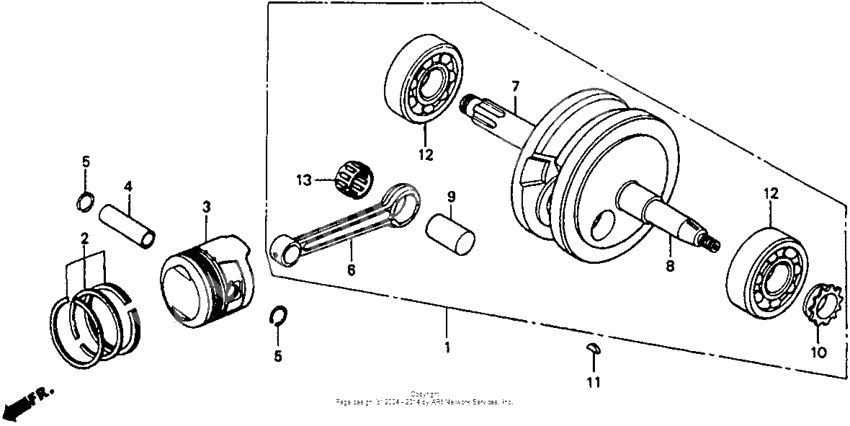

Crankshaft
Crankshaft
Вал коленчатый (Ref #1)
1
Part #13000-GB5-930
Комплект колец (Ref #2)
2
Part #13031-HF7-305
Комплект колец (Ref #2)
2
Part #13021-HF7-305
Комплект колец (Ref #2)
2
Part #13011-HF7-305
Ring set (1.00) (Ref #2)
2
Part #13051-HF7-305
Ring set (0.75) (Ref #2)
2
Part #13014-GT0-305
Piston (1.00) (Ref #3)
3
Part #13105-GB5-306
Piston (0.75) (Ref #3)
3
Part #13104-GB5-306
Piston (os 0.50) (Ref #3)
3
Part #13103-GB5-306
Piston (os 0.25) (Ref #3)
3
Part #13102-GB5-306
Piston (std) (Ref #3)
3
Part #13101-GB5-930
Палец поршня (Ref #4)
4
Part #13111-GB0-910
Clip, piston pin (Ref #5)
5
Part #94601-13000
Clip, piston pin (Ref #5)
5
Part #94601-13000
Clip, piston pin (Ref #5)
5
Part #94601-13000
Clip, piston pin (Ref #5)
5
Part #94601-13000
шатун (Ref #6)
6
Part #13201-GF6-300
Crankshaft, r. (Ref #7)
7
Part #13311-GB5-930
Crankshaft, l (Ref #8)
8
Part #13321-GB5-930
Палец шатунный (Ref #9)
9
Part #13381-GF6-300
Звездочка (Ref #10)
10
Part #14311-035-000
Key, woodruff (4mm) (Ref #11)
11
Part #90701-HB6-010
Bearing (6304) (Ref #12)
12
Part #91001-GF6-004
Bearing (6304) (Ref #12)
12
Part #91001-GF6-004
Bearing (6304) (Ref #12)
12
Part #91001-GF6-004
Bearing (6304) (Ref #12)
12
Part #91001-GF6-004
Bearing *white* (Ref #13)
13
Part #91103-GF6-003
Bearing *blue* (Ref #13)
13
Part #91102-GF6-003
Bearing *red* (Ref #13)
13
Part #91101-GF6-003
