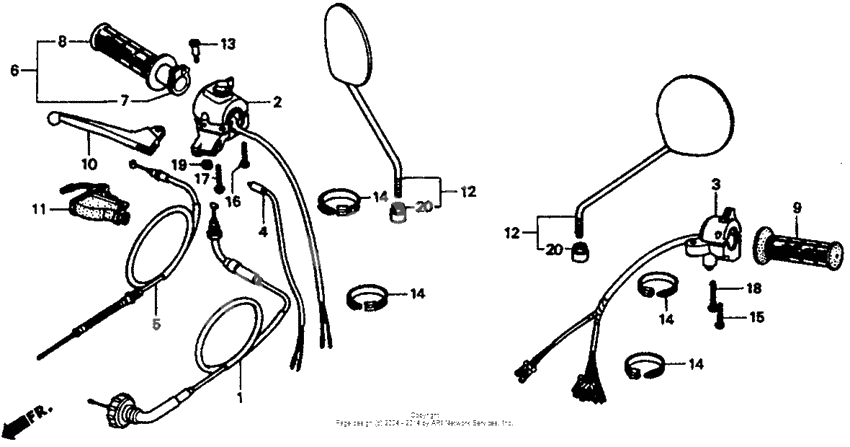

Handle switch + cables + mirrors
Handle switch + cables + mirrors
Cable set, throttle (Ref #1)
1
Part #17920-GAN-305
Switch assy., stop (Ref #2)
2
Part #35130-GAN-770
Switch comp.,wink (Ref #3)
3
Part #35200-GAN-671
Switch,fr.stop (Ref #4)
4
Part #35340-GAN-620
Cable comp.,fr.br (Ref #5)
5
Part #45450-126-900
Pipe, throttle grip (Ref #7)
7
Part #53141-125-771
Rubber, r. grip (Ref #8)
8
Part #53165-GCF-305
Rubber, l. grip (Ref #9)
9
Part #53166-GCF-305
Lever, r. handlebar (Ref #10)
10
Part #53175-GN2-930
Cover,r hndl lev (Ref #11)
11
Part #53178-125-770
Mirror assy (Ref #12)
12
Part #88210-165-506
Mirror assy (Ref #12)
12
Part #88210-165-506
Mirror assy (Ref #12)
12
Part #88210-165-506
Mirror assy (Ref #12)
12
Part #88210-165-506
Screw (5mm) (Ref #13)
13
Part #90115-147-000
Screw,pan,5x25 (Ref #15)
15
Part #93500-050250G
Screw, pan, 5x28 (Ref #16)
16
Part #93500-050280G
Screw, pan (5x32) (Ref #17)
17
Part #93500-050320G
Screw, pan, 5x40 (Ref #18)
18
Part #93500-050400G
Гайка (Ref #19)
19
Part #94001-050-000-S
Nut, lock (Ref #20)
20
Part #90134-GM8-000
Nut, lock (Ref #20)
20
Part #90134-GM8-000
Nut, lock (Ref #20)
20
Part #90134-GM8-000
Nut, lock (Ref #20)
20
Part #90134-GM8-000
