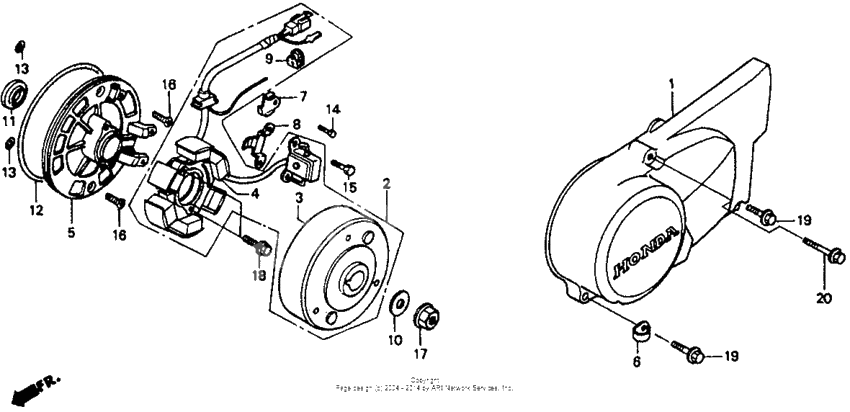

Left crankcase cover
Left crankcase cover
Cover, l. crankcase (Ref #1)
1
Part #11341-GAN-770
Alternator assy. (Ref #2)
2
Part #31100-GAN-671
Маховик (Ref #3)
3
Part #31110-GAN-671
STATOR (Ref #4)
4
Part #31120-GAN-671
Основание стартера (Ref #5)
5
Part #31131-GS9-020
CLAMP (Ref #7)
7
Part #32961-GS9-010
Clamp, pulser wire (Ref #8)
8
Part #32962-GS9-000
Grmt,neut sw cord (Ref #9)
9
Part #32981-GB4-770
Washer, magnet fixing (Ref #10)
10
Part #90426-035-000
Oil seal (18.9x30x5) (Ref #11)
11
Part #91202-GK4-722
Прокладка (Ref #12)
12
Part #91301-035-003
Прокладка (Ref #13)
13
Part #91317-171-003
Прокладка (Ref #13)
13
Part #91317-171-003
Прокладка (Ref #13)
13
Part #91317-171-003
Прокладка (Ref #13)
13
Part #91317-171-003
Болт (Ref #14)
14
Part #93301-050060H
Болт (Ref #15)
15
Part #93301-050100H
Болт (Ref #16)
16
Part #93600-060-160-A
Болт (Ref #16)
16
Part #93600-060-160-A
Болт (Ref #16)
16
Part #93600-060-160-A
Болт (Ref #16)
16
Part #93600-060-160-A
Гайка (Ref #17)
17
Part #94050-10000
Bolt, flange, 6x22 (Ref #18)
18
Part #96001-0602200
BOLT (Ref #19)
19
Part #96001-060-280-0
BOLT (Ref #19)
19
Part #96001-060-280-0
BOLT (Ref #19)
19
Part #96001-060-280-0
BOLT (Ref #19)
19
Part #96001-060-280-0
Bolt, flange, 6x35 (Ref #20)
20
Part #96001-0603500
