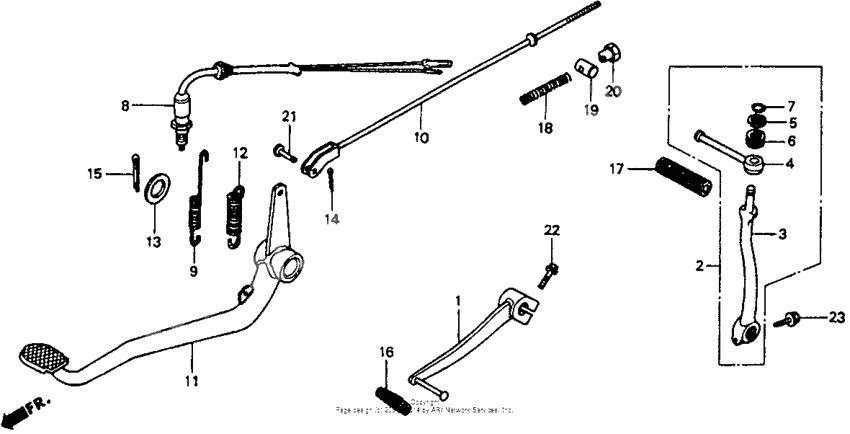

Pedal
Pedal
Pedal,gear change (Ref #1)
1
Part #24701-GAN-670
Arm,kick starter (Ref #2)
2
Part #28300-126-770
Arm,kick starter (Ref #3)
3
Part #28301-126-770
Pedal, kick starter (Ref #4)
4
Part #28302-126-770
Шайба (Ref #5)
5
Part #28303-001-000
Пружина (Ref #6)
6
Part #28322-001-000
CLIP (Ref #7)
7
Part #28324-001-000
Switch assy.,rr.s (Ref #8)
8
Part #35350-126-900
Spring,stop switc (Ref #9)
9
Part #35357-126-900
Rod comp.,rr.brak (Ref #10)
10
Part #43451-126-900
PEDAL,BRAKE (Ref #11)
11
Part #46500-126-900
Spring,brake peda (Ref #12)
12
Part #46514-126-900
Washer, 17x22 (Ref #13)
13
Part #90521-028-000
PIN (Ref #14)
14
Part #94201-20120
Штифт (Ref #15)
15
Part #9420130450
PIN (Ref #15)
15
Part #94201-30250
Rubber, shift pedal (Ref #16)
16
Part #9501140000
Rubber, kick starter (Ref #17)
17
Part #9501151000
Spring a, brake rod (Ref #18)
18
Part #9501473100
Joint b, brake arm (Ref #19)
19
Part #9501532001
Nut b, brake rod adjusting (Ref #20)
20
Part #9501542000
Pin, joint (Ref #21)
21
Part #9501553000
BOLT (Ref #22)
22
Part #95701-060-200-7
BOLT (Ref #23)
23
Part #95701-060-220-7
