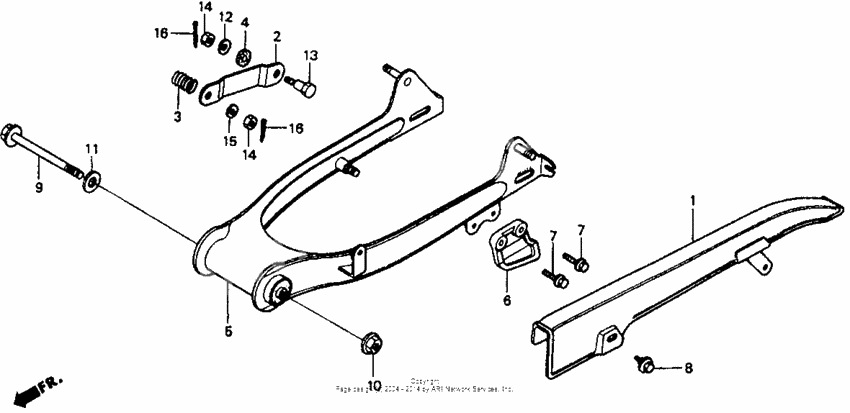

Swingarm
Swingarm
Case,drive chain (Ref #1)
1
Part #40510-GB2-000
Link,rear brake (Ref #2)
2
Part #43431-124-740
Пружина (Ref #3)
3
Part #43434-250-000
RUBBER (Ref #4)
4
Part #43434-286-000
Swingarm *r157* (Ref #5)
5
Part #52000-126-900ZE
Guard, chain (Ref #6)
6
Part #52156-GAN-670
Болт (Ref #7)
7
Part #90110-147-000
Болт (Ref #7)
7
Part #90110-147-000
Болт (Ref #7)
7
Part #90110-147-000
Болт (Ref #7)
7
Part #90110-147-000
Болт (Ref #8)
8
Part #90114-126-900
Bolt, flg (10x130) (Ref #9)
9
Part #90119-MJ0-000
Nut, u, 10mm (Ref #10)
10
Part #90304-GE8-003
Washer, head, 10mm (Ref #11)
11
Part #90411-706-000
Washer a (Ref #12)
12
Part #90524-030-000
Washer, 8mm (Ref #12)
12
Part #90505-425-000
Болт сквозное (Ref #13)
13
Part #9281110000
Гайка (Ref #14)
14
Part #94001-080-000-S
Гайка (Ref #14)
14
Part #94001-080-000-S
Гайка (Ref #14)
14
Part #94001-080-000-S
Гайка (Ref #14)
14
Part #94001-080-000-S
Шайба (Ref #15)
15
Part #94101-08000
PIN (Ref #16)
16
Part #94201-20150
PIN (Ref #16)
16
Part #94201-20150
PIN (Ref #16)
16
Part #94201-20150
PIN (Ref #16)
16
Part #94201-20150
