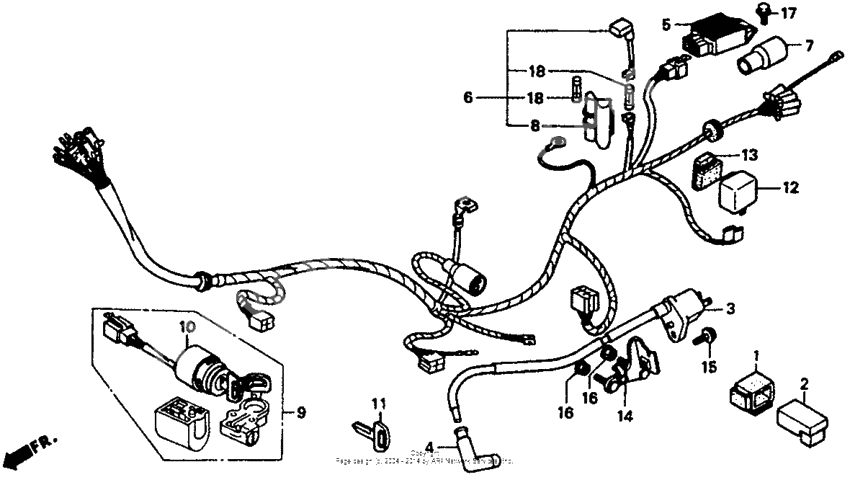

Wire harness
Wire harness
Cushion, c.d.i. unit (Ref #1)
1
Part #30401-GB4-770
Module, ign cont (Ref #2)
2
Part #30410-141-751
Катушка зажигания (Ref #3)
3
Part #30510-GJ1-405
Cap assy. (Ref #4)
4
Part #30700-GB3-602
Rectifier, regulator (Ref #5)
5
Part #31600-GW0-004
Wire harness (Ref #6)
6
Part #32100-GAN-670
Cover, wire harness connector (Ref #7)
7
Part #32108-046-750
Case,fuse conn. (Ref #8)
8
Part #32121-196-003
Key set (Ref #9)
9
Part #35010-126-861
Sw assy,comb (Ref #10)
10
Part #35100-126-902
Key, blank (type1) (Ref #11)
11
Part #35121-MR1-770
Relay, turn signal (Ref #12)
12
Part #38301-KJ6-743
Suspension (Ref #13)
13
Part #38306-GE7-000
Подставка катушки зажигания (Ref #14)
14
Part #50326-GAN-670
Bolt, flange, 5x22 (Ref #15)
15
Part #90112-GK8-010
Гайка (Ref #16)
16
Part #94050-06000
Гайка (Ref #16)
16
Part #94050-06000
Гайка (Ref #16)
16
Part #94050-06000
Гайка (Ref #16)
16
Part #94050-06000
BOLT (Ref #17)
17
Part #95701-060-120-0
Предохранитель (Ref #18)
18
Part #9820010700
Предохранитель (Ref #18)
18
Part #9820010700
Предохранитель (Ref #18)
18
Part #9820010700
Предохранитель (Ref #18)
18
Part #9820010700
