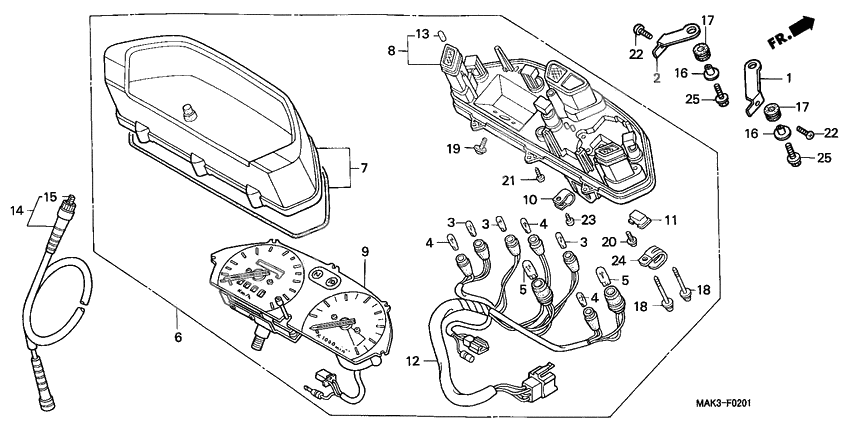

Meter 2
Meter 2
Stay,r meter (Ref #1)
1
Part #33712-MAK-E20
Stay,l meter (Ref #2)
2
Part #33713-MAK-E20
Bulb (12v1.7w) (Ref #5)
5
Part #34909-KW3-003
Bulb (12v1.7w) (Ref #5)
5
Part #34909-KW3-003
Bulb (12v1.7w) (Ref #5)
5
Part #34909-KW3-003
Bulb (12v1.7w) (Ref #5)
5
Part #34909-KW3-003
Meter assy,comb (Ref #6)
6
Part #37100-MAK-E21
Upper case assy (Ref #7)
7
Part #37102-MAK-E21
Lower case assy (Ref #8)
8
Part #37103-MAK-E21
Meter comp,sp&ta (Ref #9)
9
Part #37110-MAK-E21
CLAMP (Ref #10)
10
Part #37215-KR1-760
GROMMET (Ref #11)
11
Part #37216-GJ8-701
Socket comp (Ref #12)
12
Part #37223-MAK-E21
Rubber, cushion (Ref #13)
13
Part #37304-198-901
Cable assy speedomet (Ref #14)
14
Part #44830-MAK-000
Cable inner (Ref #15)
15
Part #44831-MAK-650
Collar, chain guard (Ref #16)
16
Part #52159-KB7-000
Collar, chain guard (Ref #16)
16
Part #52159-KB7-000
Collar, chain guard (Ref #16)
16
Part #52159-KB7-000
Collar, chain guard (Ref #16)
16
Part #52159-KB7-000
Cushion, air cleaner (Ref #17)
17
Part #80105-MG9-000
Cushion, air cleaner (Ref #17)
17
Part #80105-MG9-000
Cushion, air cleaner (Ref #17)
17
Part #80105-MG9-000
Cushion, air cleaner (Ref #17)
17
Part #80105-MG9-000
Болт (Ref #18)
18
Part #90133-SG0-A01
Болт (Ref #18)
18
Part #90133-SG0-A01
Болт (Ref #18)
18
Part #90133-SG0-A01
Болт (Ref #18)
18
Part #90133-SG0-A01
Screw-washer (Ref #19)
19
Part #90035-166-008
Screw-washer, 3x8 (Ref #20)
20
Part #90102-KM9-008
Screw, tap (4x14) (Ref #21)
21
Part #90109-MZ5-008
Болт (Ref #22)
22
Part #93500-060-160-A
Болт (Ref #22)
22
Part #93500-060-160-A
Болт (Ref #22)
22
Part #93500-060-160-A
Болт (Ref #22)
22
Part #93500-060-160-A
Болт (Ref #23)
23
Part #93903-24320
Clip,2x80 (Ref #24)
24
Part #94591-28000
Bolt, flange, 6x25 (Ref #25)
25
Part #95701-060-250-7
Bolt, flange, 6x25 (Ref #25)
25
Part #95701-060-250-7
Bolt, flange, 6x25 (Ref #25)
25
Part #95701-060-250-7
Bolt, flange, 6x25 (Ref #25)
25
Part #95701-060-250-7
-
1890032-ML7-671
Screw, tapping (4x3)
2Replaced by 90133-SG0-A01 Доступно: Нет в наличии
