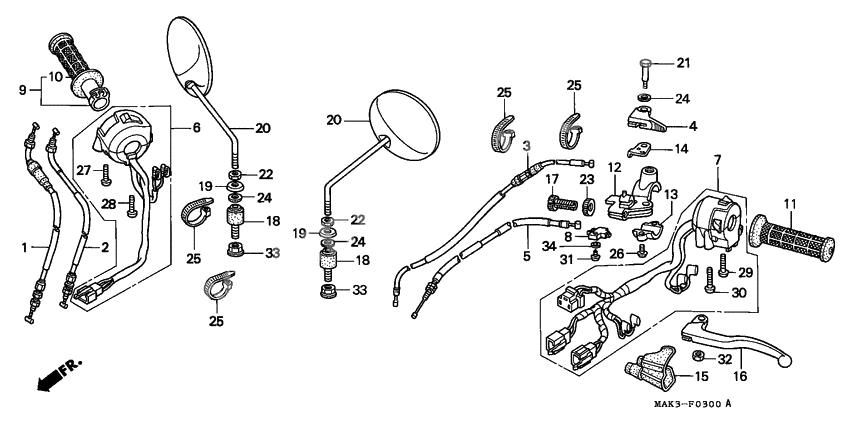

Handle lever/switch/ cable
Handle lever/switch/ cable
Cable a comp. thrott (Ref #1)
1
Part #17910-MAK-000
Cable b comp. thrott (Ref #2)
2
Part #17920-MAK-000
Cable comp,choke (Ref #3)
3
Part #17950-MAN-910
Рукоятка (Ref #4)
4
Part #17961-MG2-010
Cable comp. clutch (Ref #5)
5
Part #22870-MAK-000
Set,sw assy.lt st (Ref #6)
6
Part #35015-MAK-F00
Sw set,winker (Ref #7)
7
Part #35020-MAK-E20
Switch assy., clutch (Ref #8)
8
Part #35330-MK5-003
Grip comp. throttle (Ref #9)
9
Part #53140-MAK-000
Grip,r.handle (Ref #10)
10
Part #53165-KS3-900
Grip,l.handle (Ref #11)
11
Part #53166-KS3-900
Brkt, l. handlebar (Ref #12)
12
Part #53172-MK5-000
Holder, l. lever bracket (Ref #13)
13
Part #53174-KE1-000
Plate, point (Ref #14)
14
Part #53176-MM9-000
Cover l hndl lvr (Ref #15)
15
Part #53177-MG7-000
Lever,l strg hndl (Ref #16)
16
Part #53178-MAN-600
Bolt, cable adj. (Ref #17)
17
Part #53192-268-000
Stay mirror housing (Ref #18)
18
Part #88112-MAK-000
Stay mirror housing (Ref #18)
18
Part #88112-MAK-000
Stay mirror housing (Ref #18)
18
Part #88112-MAK-000
Stay mirror housing (Ref #18)
18
Part #88112-MAK-000
Шайба (Ref #19)
19
Part #88114-MAK-000
Шайба (Ref #19)
19
Part #88114-MAK-000
Шайба (Ref #19)
19
Part #88114-MAK-000
Шайба (Ref #19)
19
Part #88114-MAK-000
Mirror comp (Ref #20)
20
Part #88210-MAK-E20
Mirror comp (Ref #20)
20
Part #88210-MAK-E20
Mirror comp (Ref #20)
20
Part #88210-MAK-E20
Mirror comp (Ref #20)
20
Part #88210-MAK-E20
Bolt hand lev piv (Ref #21)
21
Part #90113-MG2-000
Nut, lock (Ref #22)
22
Part #90301-KBA-900
Nut, lock (Ref #22)
22
Part #90301-KBA-900
Nut, lock (Ref #22)
22
Part #90301-KBA-900
Nut, lock (Ref #22)
22
Part #90301-KBA-900
Nut, fixing (Ref #23)
23
Part #90321-315-670
Болт (Ref #26)
26
Part #93500-050-160-G
Screw-washer (5x20) (Ref #27)
27
Part #93892-0502007
Screw-washer (5x25) (Ref #28)
28
Part #93892-0502507
Screw-washer (5x35) (Ref #29)
29
Part #93892-0503507
Screw-washer (5x45) (Ref #30)
30
Part #93892-0504507
Болт (Ref #31)
31
Part #93901-32320
Гайка (Ref #32)
32
Part #94002-060-000-S
Nut, flange (10mm) (Ref #33)
33
Part #90303-428-900
Nut, flange (10mm) (Ref #33)
33
Part #90303-428-900
Nut, flange (10mm) (Ref #33)
33
Part #90303-428-900
Nut, flange (10mm) (Ref #33)
33
Part #90303-428-900
Шайба (Ref #34)
34
Part #94111-03000
