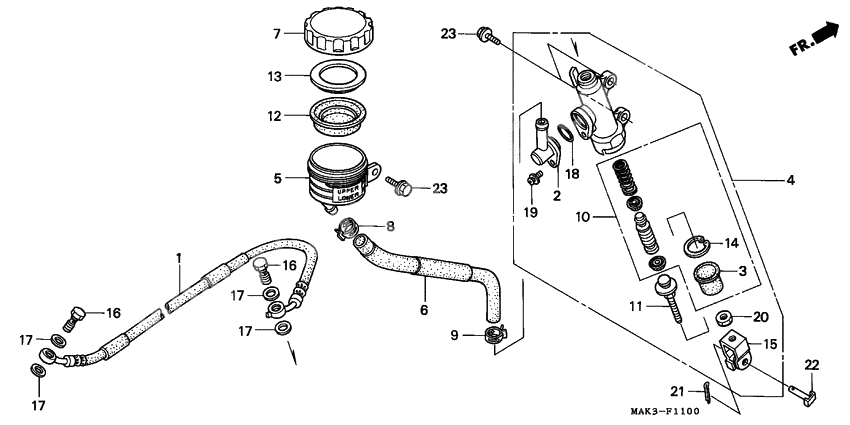

Rear brake master cylinder
Rear brake master cylinder
Hose comp,rr brk (Ref #1)
1
Part #43310-MAK-E21
Коннектор (Ref #2)
2
Part #43503-MB2-006
Ботинок (Ref #3)
3
Part #43504-MB2-006
Sub assy,rr m/c (Ref #4)
4
Part #43510-MAK-006
Cup, oil (Ref #5)
5
Part #43511-MR7-016
Hose,rr m/c (Ref #6)
6
Part #43512-MAK-003
Cap, oil cup (Ref #7)
7
Part #43513-MY1-006
CLAMP (Ref #8)
8
Part #43514-KS6-701
CLAMP (Ref #9)
9
Part #43514-MN9-006
Piston set, master c (Ref #10)
10
Part #43520-MJ6-315
Штанга (Ref #11)
11
Part #43530-MJ0-006
DIAPHRAGM (Ref #12)
12
Part #45520-300-000
Пластина (Ref #13)
13
Part #45521-MJ6-006
Circlip (Ref #14)
14
Part #46182-500-013
Joint, brake rod (Ref #15)
15
Part #46504-KV6-702
Oil bolt,10x22 (Ref #16)
16
Part #90145-GBY-910
Oil bolt,10x22 (Ref #16)
16
Part #90145-GBY-910
Oil bolt,10x22 (Ref #16)
16
Part #90145-GBY-910
Oil bolt,10x22 (Ref #16)
16
Part #90145-GBY-910
Прокладка (Ref #18)
18
Part #91212-422-006
Screw-washer (Ref #19)
19
Part #93893-040-120-7
Гайка (Ref #20)
20
Part #94002-080-000-S
PIN (Ref #21)
21
Part #94201-20120
Pin d, joint (Ref #22)
22
Part #9501554000
BOLT (Ref #23)
23
Part #95701-060-200-0
BOLT (Ref #23)
23
Part #95701-060-200-0
BOLT (Ref #23)
23
Part #95701-060-200-0
BOLT (Ref #23)
23
Part #95701-060-200-0
