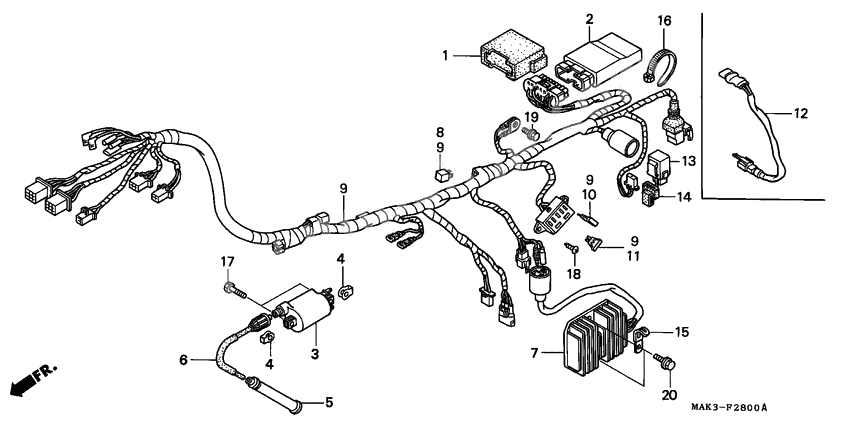

Wire harness/ ignition coil
Wire harness/ ignition coil
Cushion, spark unit (Ref #1)
1
Part #30405-MBT-610
Unit comp,spark (Ref #2)
2
Part #30410-MAK-E21
Катушка зажигания (Ref #3)
3
Part #30500-ML7-013
Кольцо/шайба (Ref #4)
4
Part #30520-ML7-000
Кольцо/шайба (Ref #4)
4
Part #30520-ML7-000
Кольцо/шайба (Ref #4)
4
Part #30520-ML7-000
Кольцо/шайба (Ref #4)
4
Part #30520-ML7-000
Cap assy. (Ref #5)
5
Part #30700-MK4-611
Cord assy,high/t (Ref #6)
6
Part #30731-MAK-000
Reg rect assy (Ref #7)
7
Part #31600-MAK-000
Rectifier comp., silicon (Ref #8)
8
Part #31700-196-000
Fuse (Ref #10)
10
Part #98200-31500
Fuse (Ref #11)
11
Part #98200-33000
Relay, turn signal (Ref #13)
13
Part #38301-KK9-952
Suspension (Ref #14)
14
Part #38306-KR0-000
Clip (4x50) (Ref #15)
15
Part #90601-KJ9-000
Band, wire, 165mm (black) (Ref #16)
16
Part #90651-KV6-003
Bolt, hex., 6x20 (Ref #17)
17
Part #92101-06020-4J
Screw, pan, 4x10 (Ref #18)
18
Part #93500-040100G
BOLT (Ref #19)
19
Part #95701-060-100-0
BOLT (Ref #20)
20
Part #95701-060-120-0
