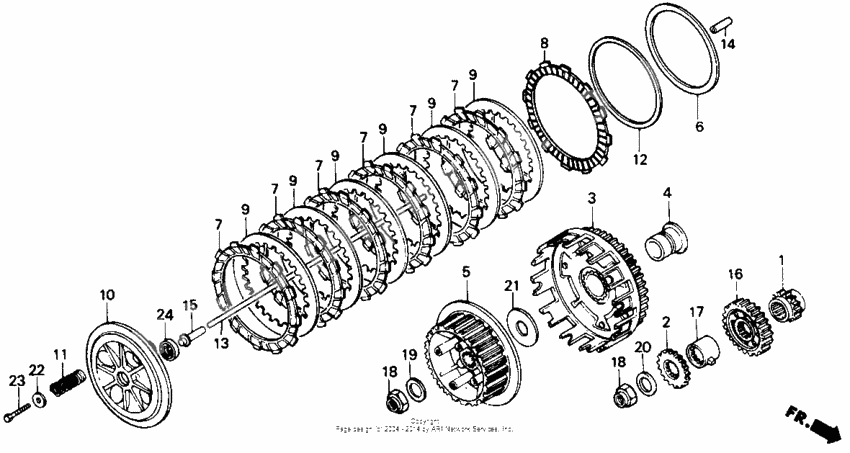

Сцепление
Сцепление
Звездочка (Ref #1)
1
Part #14312-MN1-670
Gear,pump drive (Ref #2)
2
Part #15130-MG3-000
Outer comp.,clutc (Ref #3)
3
Part #22100-KN8-000
Guide, clutch (Ref #4)
4
Part #22116-MN1-670
Center, clutch (28t) (Ref #5)
5
Part #22120-KN8-000
Seat,spg.judder (Ref #6)
6
Part #22125-MK4-600
Dis,cluttch frict (Ref #8)
8
Part #22201-MK4-600
Plate, clu press (Ref #10)
10
Part #22350-MG3-000
Пружина (Ref #11)
11
Part #22401-MK2-003
Spring,judder (Ref #12)
12
Part #22402-MK4-601
Rod, clutch lifter (Ref #13)
13
Part #22850-MG3-000
Piece (Ref #14)
14
Part #22852-MK5-000
Lifter, clutch (Ref #15)
15
Part #22853-KN8-000
Gear,primary driv (Ref #16)
16
Part #23121-MK4-600
Boss,pulser (Ref #17)
17
Part #30220-MK4-600
Nut, lock (18mm) (Ref #18)
18
Part #90236-HA0-000
Nut, lock (18mm) (Ref #18)
18
Part #90236-HA0-000
Nut, lock (18mm) (Ref #18)
18
Part #90236-HA0-000
Nut, lock (18mm) (Ref #18)
18
Part #90236-HA0-000
Шайба (Ref #19)
19
Part #90432-KE5-000
Washer,special,18 (Ref #20)
20
Part #90432-MK4-600
Шайба (Ref #21)
21
Part #90452-471-000
Washer, 6x19 (Ref #22)
22
Part #90481-259-000
Bolt,hex.,6x25 (Ref #23)
23
Part #92025-06025-0A
Bearing, radial ball, 6001 (Ref #24)
24
Part #96100-6001000
