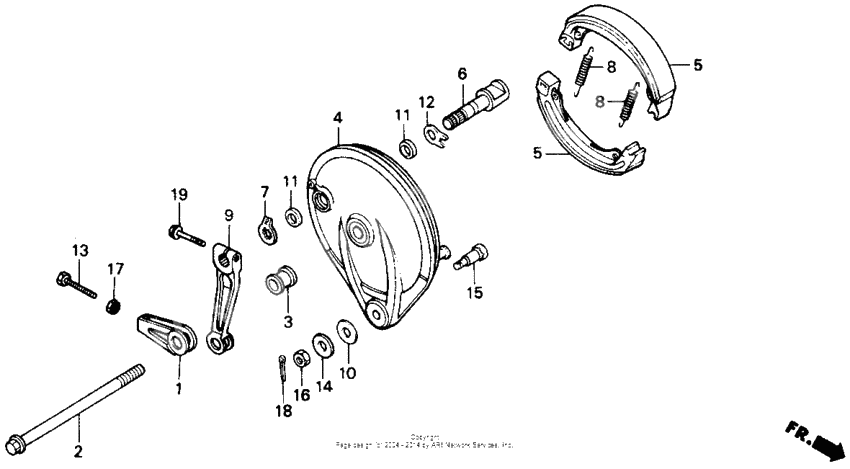

Rear brake panel
Rear brake panel
ADJUSTER,CHAIN (Ref #1)
1
Part #40543-MK4-000
Axle, rr. wheel (Ref #2)
2
Part #42301-KL8-900
Collar, rr. (Ref #3)
3
Part #42313-MK4-690
Panel comp.,rr br (Ref #4)
4
Part #43100-MK4-000
Cam,rr.brake (Ref #6)
6
Part #43141-MC4-000
Indicator, fr. brake (Ref #7)
7
Part #45145-121-710
Spring, brake shoe (Ref #8)
8
Part #43151-329-000
Spring, brake shoe (Ref #8)
8
Part #43151-329-000
Spring, brake shoe (Ref #8)
8
Part #43151-329-000
Spring, brake shoe (Ref #8)
8
Part #43151-329-000
Arm,rr.brake (Ref #9)
9
Part #43410-MK4-000
RUBBER (Ref #10)
10
Part #43434-286-000
Dust seal, brake cam (Ref #11)
11
Part #45134-KB7-005
Dust seal, brake cam (Ref #11)
11
Part #45134-KB7-005
Dust seal, brake cam (Ref #11)
11
Part #45134-KB7-005
Dust seal, brake cam (Ref #11)
11
Part #45134-KB7-005
Seat,rr.brake cam (Ref #12)
12
Part #45142-KN8-000
Bolt,chain adjust (Ref #13)
13
Part #90119-300-000
Washer a (Ref #14)
14
Part #90524-030-000
Washer, 8mm (Ref #14)
14
Part #90505-425-000
Bolt a,brk,strr. (Ref #15)
15
Part #92811-20000
Гайка (Ref #16)
16
Part #94001-080-000-S
Гайка (Ref #17)
17
Part #94002-080-000-S
PIN (Ref #18)
18
Part #9420120350
PIN (Ref #18)
18
Part #94201-20220
Bolt, flange, 6x22 (Ref #19)
19
Part #95701-0602200
