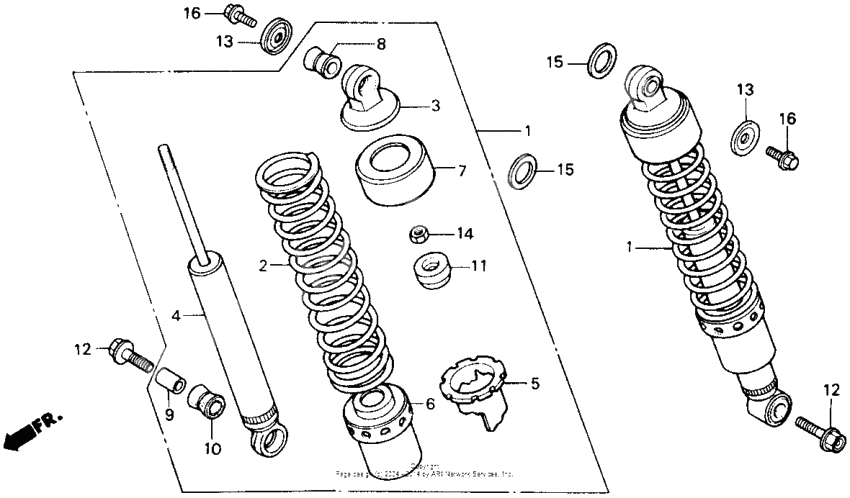

Shock absorber
Shock absorber
Cushion assy.,rr. (Ref #1)
1
Part #52400-MK6-671
Cushion assy.,rr. (Ref #1)
1
Part #52400-MK6-671
Cushion assy.,rr. (Ref #1)
1
Part #52400-MK6-671
Cushion assy.,rr. (Ref #1)
1
Part #52400-MK6-671
Spring, rr. shock (Ref #2)
2
Part #52401-MK6-671
Joint comp.,upper (Ref #3)
3
Part #52403-KR3-003
Damper comp.,rr. (Ref #4)
4
Part #52410-MK6-671
ADJUSTER,SPRING (Ref #5)
5
Part #52422-ME4-003
Seat spg under (Ref #6)
6
Part #52458-KL8-003
Case,rr.cushion u (Ref #7)
7
Part #52460-KR3-003
Bush, rr. (Ref #8)
8
Part #52485-KR3-003
Collar, rr. shock (Ref #9)
9
Part #52486-463-000
Bush, rr. (Ref #10)
10
Part #52489-KR3-003
RUBBER,STOPPER (Ref #11)
11
Part #52517-KR3-003
Bolt,flange,10x35 (Ref #12)
12
Part #90178-KN8-730
Bolt,flange,10x35 (Ref #12)
12
Part #90178-KN8-730
Bolt,flange,10x35 (Ref #12)
12
Part #90178-KN8-730
Bolt,flange,10x35 (Ref #12)
12
Part #90178-KN8-730
Washer, rr. shock (Ref #13)
13
Part #90502-429-770
Washer, rr. shock (Ref #13)
13
Part #90502-429-770
Washer, rr. shock (Ref #13)
13
Part #90502-429-770
Washer, rr. shock (Ref #13)
13
Part #90502-429-770
Гайка (Ref #14)
14
Part #94002-100-000-S
Washer, plain, 14mm (Ref #15)
15
Part #9410214000
Washer, plain, 14mm (Ref #15)
15
Part #9410214000
Washer, plain, 14mm (Ref #15)
15
Part #9410214000
Washer, plain, 14mm (Ref #15)
15
Part #9410214000
Болт (Ref #16)
16
Part #96001-0601402
Болт (Ref #16)
16
Part #96001-0601402
Болт (Ref #16)
16
Part #96001-0601402
Болт (Ref #16)
16
Part #96001-0601402
