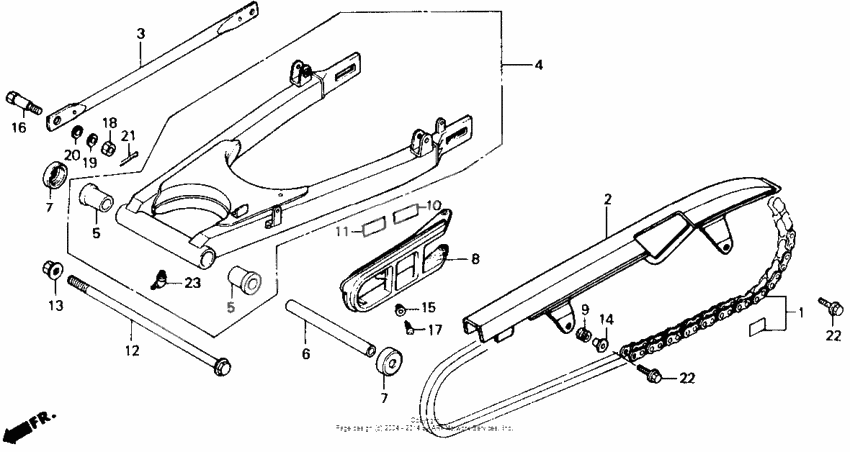

Swingarm
Swingarm
Chain set,drive (Ref #1)
1
Part #405A3-MK6-671
Case,drive chain (Ref #2)
2
Part #40510-KN8-730
Arm,rr.brake stop (Ref #3)
3
Part #43431-MK6-670
Arm assy.,swing (Ref #4)
4
Part #52100-KN8-000
Bush,fork.pivot (Ref #5)
5
Part #52108-KE5-003
Bush,fork.pivot (Ref #5)
5
Part #52108-KE5-003
Bush,fork.pivot (Ref #5)
5
Part #52108-KE5-003
Bush,fork.pivot (Ref #5)
5
Part #52108-KE5-003
Collar.rr fork (c (Ref #6)
6
Part #52141-MK4-000
Cap, dust seal (Ref #7)
7
Part #52144-356-005
Cap, dust seal (Ref #7)
7
Part #52144-356-005
Cap, dust seal (Ref #7)
7
Part #52144-356-005
Cap, dust seal (Ref #7)
7
Part #52144-356-005
Slider, chain (Ref #8)
8
Part #52170-MK4-690
GROMMET (Ref #9)
9
Part #83551-MB9-000
Label,tire (Ref #10)
10
Part #87505-MK6-670
Mark,drive chain (Ref #11)
11
Part #87507-MK6-670
Bolt.rear fork pi (Ref #12)
12
Part #90121-MK4-000
Nut, u (14mm) (Ref #13)
13
Part #90305-GE8-003
Washer, 6x20 (Ref #14)
14
Part #90502-VA4-640
Washer, fr (Ref #15)
15
Part #90556-044-000
Болт сквозное (Ref #16)
16
Part #9281220000
Болт (Ref #17)
17
Part #93901-25210
Гайка (Ref #18)
18
Part #94001-080-000-S
Шайба (Ref #19)
19
Part #94101-08000
Шайба (Ref #20)
20
Part #94111-10000
PIN (Ref #21)
21
Part #9420120350
PIN (Ref #21)
21
Part #94201-20220
Bolt, flange, 6x16 (Ref #22)
22
Part #95701-0601602
Bolt, flange, 6x16 (Ref #22)
22
Part #95701-0601602
Bolt, flange, 6x16 (Ref #22)
22
Part #95701-0601602
Bolt, flange, 6x16 (Ref #22)
22
Part #95701-0601602
Fitting (b.76s) (Ref #23)
23
Part #9620180000
