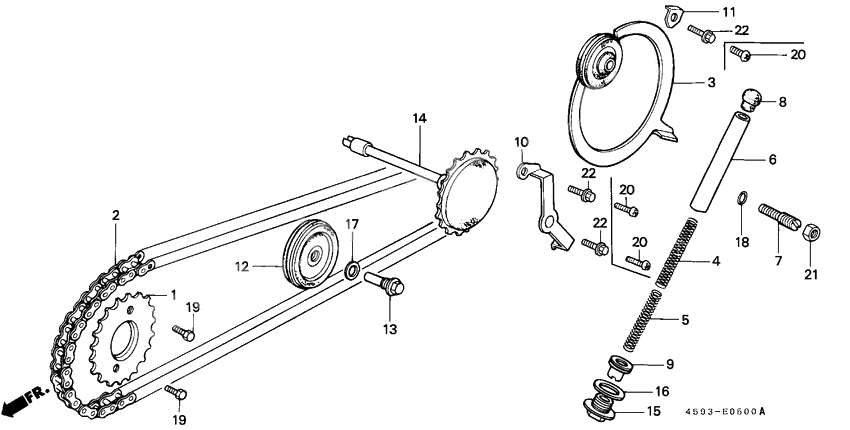

Cam chain/tensioner
Cam chain/tensioner
Sprocket, cam (30t) (Ref #1)
1
Part #14321-028-000
Chain,cam(daido) (Ref #2)
2
Part #14401-459-003
Tensioner,camchai (Ref #3)
3
Part #14500-459-000
Spring a (Ref #4)
4
Part #14541-086-010
Spg,camchain tens (Ref #5)
5
Part #14542-459-000
ROD (Ref #6)
6
Part #14550-086-010
BOLT (Ref #7)
7
Part #14561-086-010
Головка (Ref #8)
8
Part #14561-096-000
Bolt b (Ref #9)
9
Part #14562-086-000
Pl,tensioner set. (Ref #10)
10
Part #14592-459-010
Plate b (Ref #11)
11
Part #14593-028-010
Roller (Ref #12)
12
Part #14610-105-691
PIN (Ref #13)
13
Part #14615-035-010
Звездочка (Ref #14)
14
Part #14670-028-000
Bolt, sealing (14mm) (Ref #15)
15
Part #90081-086-000
Washer, sealing, 14mm (Ref #16)
16
Part #90441-035-000
Washer, 8mm (Ref #17)
17
Part #90481-035-000
O-ring, 5.5x1.5 (Ref #18)
18
Part #91301-216-000
Bolt, hex., 6x10 (Ref #19)
19
Part #92101-06010-0A
Bolt, hex., 6x10 (Ref #19)
19
Part #92101-06010-0A
Bolt, hex., 6x10 (Ref #19)
19
Part #92101-06010-0A
Bolt, hex., 6x10 (Ref #19)
19
Part #92101-06010-0A
Гайка (Ref #21)
21
Part #94002-080-000-S
