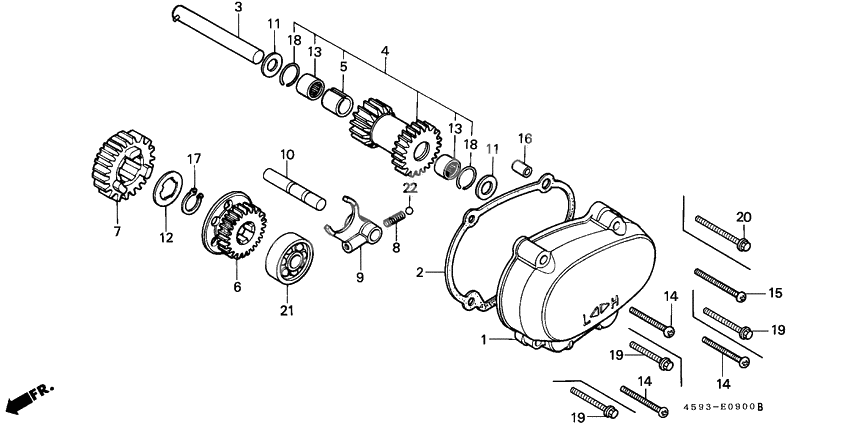

Sub transmission
Sub transmission
COVER (Ref #1)
1
Part #11371-459-772
Cover, sub-trans (Ref #1)
1
Part #11371-459-771
Прокладка (Ref #2)
2
Part #11693-459-961
Shaf,sub/miss.ctr (Ref #3)
3
Part #23900-459-772
Gear,sub ct/shaft (Ref #4)
4
Part #23910-459-771
Collar,19mm (Ref #5)
5
Part #23912-459-770
Gear,sub mission (Ref #6)
6
Part #23921-943-770
Gear,sub high (Ref #7)
7
Part #23931-459-770
Spring, ball setting (Ref #8)
8
Part #24271-968-000
Вилка (Ref #9)
9
Part #24801-459-770
Shaft,shift fork (Ref #10)
10
Part #24811-459-770
Шайба (Ref #11)
11
Part #90451-459-770
Шайба (Ref #11)
11
Part #90451-459-770
Шайба (Ref #11)
11
Part #90451-459-770
Шайба (Ref #11)
11
Part #90451-459-770
Шайба (Ref #12)
12
Part #90456-053-000
Needle,brg (Ref #13)
13
Part #91002-459-773
Needle,brg (Ref #13)
13
Part #91002-459-773
Needle,brg (Ref #13)
13
Part #91002-459-773
Needle,brg (Ref #13)
13
Part #91002-459-773
Screw, pan, 6x45 (Ref #15)
15
Part #93500-060450A
Стопор (Ref #16)
16
Part #94301-10140
Circlip (Ref #17)
17
Part #94510-20000
Clip, piston pin, 19mm (Ref #18)
18
Part #9460119000
Clip, piston pin, 19mm (Ref #18)
18
Part #9460119000
Clip, piston pin, 19mm (Ref #18)
18
Part #9460119000
Clip, piston pin, 19mm (Ref #18)
18
Part #9460119000
Bearing (6202u) (Ref #21)
21
Part #9614062020
Ball (Ref #22)
22
Part #96211-08000
