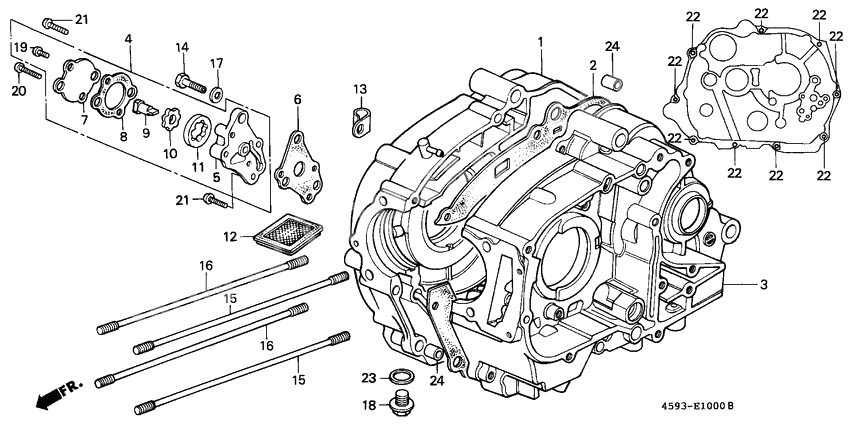

Crankcase/oil pump
Crankcase/oil pump
Crankcase, r. (Ref #1)
1
Part #11100-459-010
Прокладка картера (Ref #2)
2
Part #11191-121-631
Crankcase, l. (Ref #3)
3
Part #11200-459-770
Pump assy.,oil (Ref #4)
4
Part #15100-459-003
Body, oil pump (Ref #5)
5
Part #15111-459-003
Gasket,oil pump b (Ref #6)
6
Part #15119-121-630
Крышка масляного насоса (Ref #7)
7
Part #15121-028-060
Прокладка (Ref #8)
8
Part #15128-028-030
Driveshaft, oil pump (Ref #9)
9
Part #15181-943-000
Rotor, oil pump (Ref #10)
10
Part #15331-436-000
Rotor, oil pump (Ref #11)
11
Part #15332-436-000
Screen, oil filter (Ref #12)
12
Part #15421-035-010
Bolt, oil joint (Ref #14)
14
Part #90015-943-010
Bolt a,cyln.stud (Ref #15)
15
Part #90031-943-000
Bolt a,cyln.stud (Ref #15)
15
Part #90031-943-000
Bolt a,cyln.stud (Ref #15)
15
Part #90031-943-000
Bolt a,cyln.stud (Ref #15)
15
Part #90031-943-000
Bolt b,cyln.stud (Ref #16)
16
Part #90032-943-000
Bolt b,cyln.stud (Ref #16)
16
Part #90032-943-000
Bolt b,cyln.stud (Ref #16)
16
Part #90032-943-000
Bolt b,cyln.stud (Ref #16)
16
Part #90032-943-000
Washer c (8mm) (Ref #17)
17
Part #90475-703-000
BOLT (Ref #18)
18
Part #92800-12000
Болт (Ref #19)
19
Part #93500-050-120-A
Болт (Ref #19)
19
Part #93500-050-100-A
Болт (Ref #20)
20
Part #93500-060-160-A
Болт (Ref #21)
21
Part #93500-060-250-A
Болт (Ref #21)
21
Part #93500-060-250-A
Болт (Ref #21)
21
Part #93500-060-250-A
Болт (Ref #21)
21
Part #93500-060-250-A
Gasket (12.5x20) (Ref #23)
23
Part #90407-259-000
Стопор (Ref #24)
24
Part #94301-10140
Стопор (Ref #24)
24
Part #94301-10140
Стопор (Ref #24)
24
Part #94301-10140
Стопор (Ref #24)
24
Part #94301-10140
