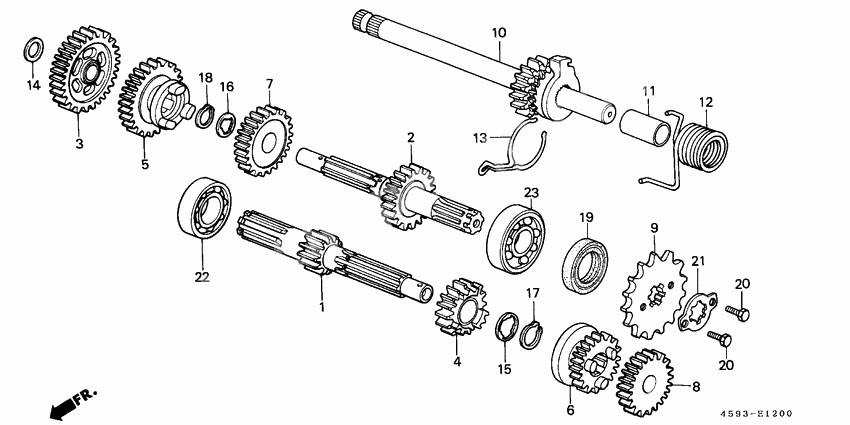

Transmission 1
Transmission 1
M/shaft,trns(13t) (Ref #1)
1
Part #23211-459-000
Gear,ct/shaft(33t (Ref #3)
3
Part #23421-459-000
Gear,m2 (Ref #4)
4
Part #23431-459-010
Редуктор (Ref #5)
5
Part #23441-459-000
Шестерня (Ref #6)
6
Part #23451-968-000
Шестерня (Ref #7)
7
Part #23461-968-000
Шестерня (Ref #8)
8
Part #23471-968-000
Spindle,starter (Ref #10)
10
Part #28250-459-010
Guide,kick spring (Ref #11)
11
Part #28255-121-690
Spring kick start (Ref #12)
12
Part #28261-121-692
Пружина (Ref #13)
13
Part #28271-121-690
Шайба (Ref #14)
14
Part #90451-121-000
Шайба (Ref #15)
15
Part #90461-028-000
Шайба (Ref #16)
16
Part #90461-459-010
Circlip (18mm) (Ref #17)
17
Part #90601-030-000
Circlip (20mm) (Ref #18)
18
Part #90601-459-000
Bolt, hex., 6x10 (Ref #20)
20
Part #92101-06010-0A
Bolt, hex., 6x10 (Ref #20)
20
Part #92101-06010-0A
Bolt, hex., 6x10 (Ref #20)
20
Part #92101-06010-0A
Bolt, hex., 6x10 (Ref #20)
20
Part #92101-06010-0A
Bearing, radial ball, 6004 (Ref #22)
22
Part #96100-6004000
Bearing, radial ball, 6204 (Ref #23)
23
Part #96100-6204000
