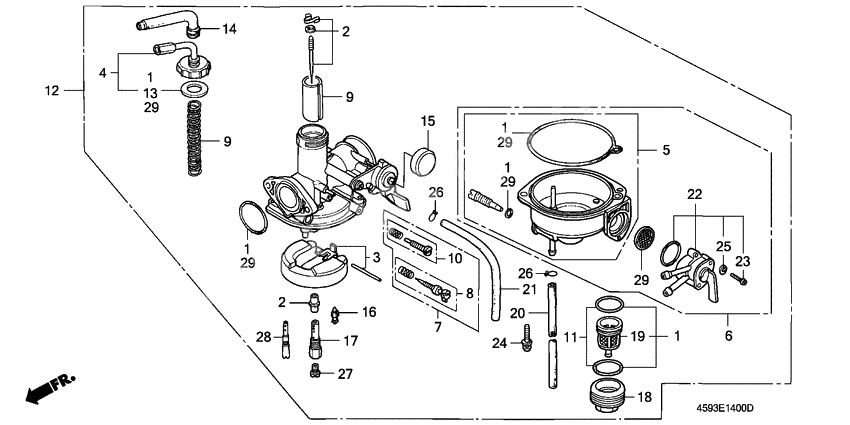

Carburetor assy
Carburetor assy
Needle set (Ref #2)
2
Part #16012-459-912
Needle set (Ref #2)
2
Part #16012-459-912
Needle set (Ref #2)
2
Part #16012-459-912
Needle set (Ref #2)
2
Part #16012-459-912
FLOAT SET (Ref #3)
3
Part #16013-883-005
Top set (Ref #4)
4
Part #16014-459-911
Chamber set,float (Ref #5)
5
Part #16015-126-852
Screw set, a (Ref #8)
8
Part #16016-GB5-681
Valve set throt (Ref #9)
9
Part #16022-KG8-911
Valve set throt (Ref #9)
9
Part #16022-KG8-911
Valve set throt (Ref #9)
9
Part #16022-KG8-911
Valve set throt (Ref #9)
9
Part #16022-KG8-911
Screw set b (Ref #10)
10
Part #16028-GC8-004
Gasket b set (Ref #11)
11
Part #16040-GB0-911
Carburetor assy. (Ref #12)
12
Part #16100-459-915
Крышка уплотнения (Ref #14)
14
Part #16118-GB4-003
Cap, choke dust (Ref #15)
15
Part #16148-141-881
Valve comp., float (Ref #16)
16
Part #16155-883-005
Держатель жиклера (Ref #17)
17
Part #16165-459-701
Cup, fuel strainer (Ref #18)
18
Part #16175-GB0-911
Стакан фильтра (Ref #19)
19
Part #16176-GB0-911
Tube,overflow (Ref #20)
20
Part #16199-428-771
Трубка топливная (Ref #21)
21
Part #16199-459-004
Body set,cock (Ref #22)
22
Part #16951-459-920
Screw, pan, 3x12 (Ref #23)
23
Part #93500-030120H
Screw-washer (Ref #24)
24
Part #93892-040-140-8
Шайба (Ref #25)
25
Part #94111-03000
Clip, tube (b6.5) (Ref #26)
26
Part #9500202650
Clip, tube (b6.5) (Ref #26)
26
Part #9500202650
Clip, tube (b6.5) (Ref #26)
26
Part #9500202650
Clip, tube (b6.5) (Ref #26)
26
Part #9500202650
Jet,slow (#72) (Ref #27)
27
Part #99101-116-0720
Jet,slow,#38 (Ref #28)
28
Part #99103-459-0380
