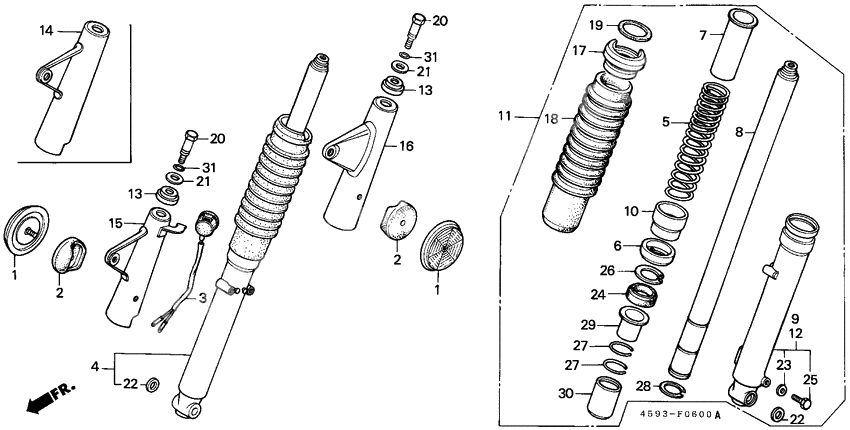

Front
Front
Fork assy,*nh35m* (Ref #4)
4
Part #51400-459-912ZA
Spring, fr. fork (Ref #5)
5
Part #51401-459-911
Seat, fr. (Ref #6)
6
Part #51407-229-300
Guide,fr.cush.spg (Ref #7)
7
Part #51409-028-000
Pipe comp.,fr.for (Ref #8)
8
Part #51410-459-911
Case comp. (Ref #9)
9
Part #51420-459-912ZA
Case comp. (Ref #9)
9
Part #51420-459-911ZA
Guide,fr.cushion (Ref #10)
10
Part #51430-229-000
Fork assy.*nh35m* (Ref #11)
11
Part #51500-459-912ZA
Case comp. (Ref #12)
12
Part #51520-459-912ZA
Case comp.*nh35m* (Ref #12)
12
Part #51520-459-911ZA
COVER (Ref #14)
14
Part #51602-459-000ZB
COVER (Ref #16)
16
Part #51606-459-000ZB
Seat, fork cover (Ref #17)
17
Part #51608-028-000
Boot,fr.fork (Ref #18)
18
Part #51611-459-880
Gasket (lower) (Ref #19)
19
Part #51624-028-020
BOLT,FORK (Ref #20)
20
Part #90123-153-000
BOLT,FORK (Ref #20)
20
Part #90123-153-000
BOLT,FORK (Ref #20)
20
Part #90123-153-000
BOLT,FORK (Ref #20)
20
Part #90123-153-000
Шайба (Ref #22)
22
Part #94101-12000
Шайба (Ref #22)
22
Part #94101-12000
Шайба (Ref #22)
22
Part #94101-12000
Шайба (Ref #22)
22
Part #94101-12000
Gasket, fr. (Ref #23)
23
Part #90543-273-000
Oil seal,fr fork (Ref #24)
24
Part #90756-121-701
Bolt, hex., 6x8 (Ref #25)
25
Part #92101-06008-0A
Cir clip (Ref #26)
26
Part #51447-028-000
Snapring a,27mm (Ref #27)
27
Part #94570-27000
Snapring a,27mm (Ref #27)
27
Part #94570-27000
Snapring a,27mm (Ref #27)
27
Part #94570-27000
Snapring a,27mm (Ref #27)
27
Part #94570-27000
Snapring b,27mm (Ref #28)
28
Part #94580-27000
Guide, fr. fork pipe (Ref #29)
29
Part #51451-028-000
Piston,fork,27mm (Ref #30)
30
Part #94603-27002
Прокладка (Ref #31)
31
Part #9460810000
Прокладка (Ref #31)
31
Part #9460810000
Прокладка (Ref #31)
31
Part #9460810000
Прокладка (Ref #31)
31
Part #9460810000
-
451400-459-911ZA
Fork assy,*nh35m*
1Replaced by 51400-459-912ZA Доступно: Нет в наличии
-
1151500-459-911ZA
Fork assy.*nh35m*
1Replaced by 51500-459-912ZA Доступно: Нет в наличии
