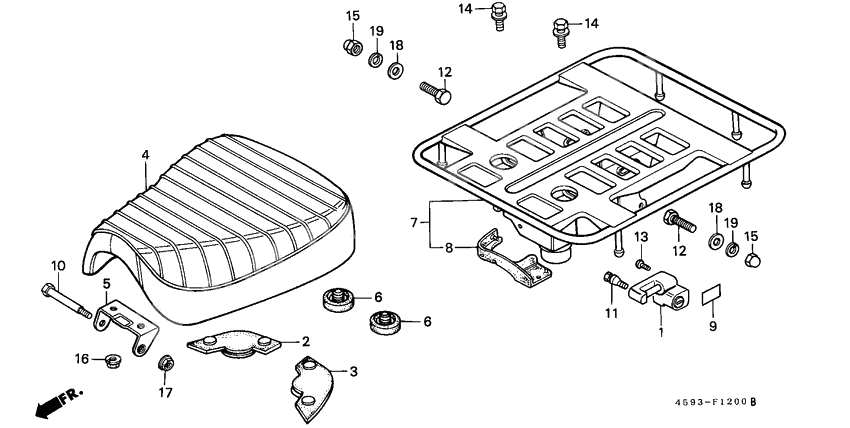

Seat/rear carrier
Seat/rear carrier
Rubber, r. seat (Ref #2)
2
Part #77151-041-000
Rubber, l. seat (Ref #3)
3
Part #77152-041-000
Seat comp (Ref #4)
4
Part #77200-459-880
Bracket a,seat (Ref #5)
5
Part #77210-098-000
Дифференциал (Ref #7)
7
Part #81202-459-670
Rub, air cleaner in. (Ref #8)
8
Part #81214-102-790
Pin, seat hinge (Ref #10)
10
Part #90101-001-010
Bolt,hex.,8x18 (Ref #12)
12
Part #90130-459-000
Bolt,hex.,8x18 (Ref #12)
12
Part #90130-459-000
Bolt,hex.,8x18 (Ref #12)
12
Part #90130-459-000
Bolt,hex.,8x18 (Ref #12)
12
Part #90130-459-000
Bolt, flange, 8x16 (Ref #14)
14
Part #95701-0801600
Bolt, flange, 8x16 (Ref #14)
14
Part #95701-0801600
Bolt, flange, 8x16 (Ref #14)
14
Part #95701-0801600
Bolt, flange, 8x16 (Ref #14)
14
Part #95701-0801600
Nut, cap, 8mm (Ref #15)
15
Part #90443-107-000
Nut, cap, 8mm (Ref #15)
15
Part #90443-107-000
Nut, cap, 8mm (Ref #15)
15
Part #90443-107-000
Nut, cap, 8mm (Ref #15)
15
Part #90443-107-000
Nut-washer (Ref #16)
16
Part #94070-06080
Гайка (Ref #16)
16
Part #94050-06080
Шайба (Ref #18)
18
Part #94101-08000
Шайба (Ref #18)
18
Part #94101-08000
Шайба (Ref #18)
18
Part #94101-08000
Шайба (Ref #18)
18
Part #94101-08000
