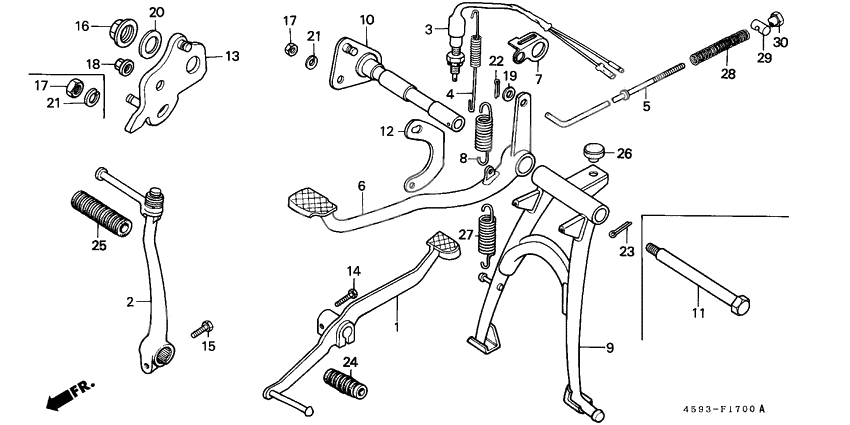

Stand/pedal
Stand/pedal
Pedal,gear change (Ref #1)
1
Part #24701-459-770
Arm,kick starter (Ref #2)
2
Part #28300-459-670
Switch, rr. stop (Ref #3)
3
Part #35350-459-911
Spring, switch (Ref #4)
4
Part #35357-046-000
Rod,rr.brake (Ref #5)
5
Part #43451-397-000
PEDAL,BRAKE (Ref #6)
6
Part #46500-102-780
Cover a, mud (Ref #7)
7
Part #46507-459-670
Spring,pedal (Ref #8)
8
Part #46514-096-700
Bolt,rr.brk.pivot (Ref #11)
11
Part #50512-459-840
BRACKET (Ref #13)
13
Part #50545-459-950
BOLT (Ref #14)
14
Part #92101-06020-0A
BOLT (Ref #14)
14
Part #95701-060-200-0
BOLT (Ref #15)
15
Part #92101-06022-0A
Bolt, flange, 6x22 (Ref #15)
15
Part #95701-0602200
Nut, flange, 12mm (Ref #16)
16
Part #9405012000
Гайка (Ref #17)
17
Part #94002-080-000-S
Гайка (Ref #17)
17
Part #94002-080-000-S
Гайка (Ref #17)
17
Part #94002-080-000-S
Гайка (Ref #17)
17
Part #94002-080-000-S
Гайка (Ref #18)
18
Part #94050-08000
Шайба (Ref #19)
19
Part #94101-06800
Шайба (Ref #19)
19
Part #94101-05000
Шайба (Ref #20)
20
Part #94101-12000
Шайба (Ref #21)
21
Part #94111-08000
Шайба (Ref #21)
21
Part #94111-08000
Шайба (Ref #21)
21
Part #94111-08000
Шайба (Ref #21)
21
Part #94111-08000
PIN (Ref #22)
22
Part #94201-20150
PIN (Ref #23)
23
Part #94201-30250
Rubber, shift pedal (Ref #24)
24
Part #9501140000
Rubber b (Ref #25)
25
Part #9501152000
Spring a, brake rod (Ref #28)
28
Part #9501473100
Joint b, brake arm (Ref #29)
29
Part #9501532001
Nut b, brake rod adjusting (Ref #30)
30
Part #9501542000
