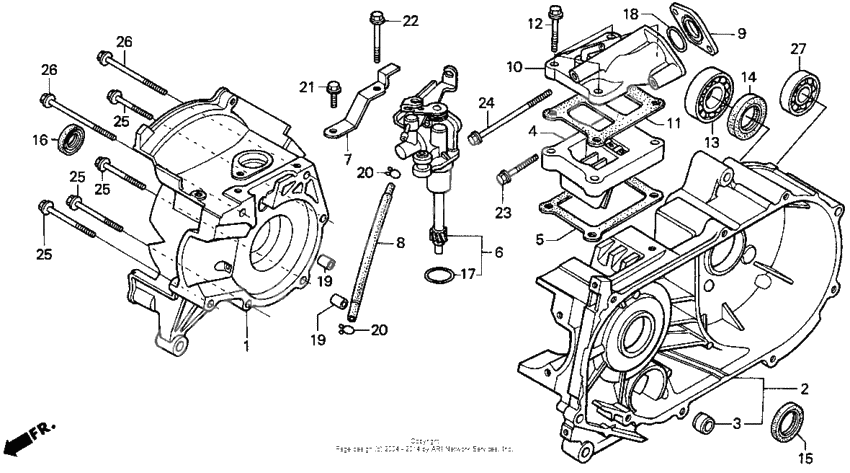

Картер
Картер
Crankcase, r. (Ref #1)
1
Part #11101-GZ4-670
Crankcase, l. (Ref #2)
2
Part #11200-GZ4-671
Втулка (Ref #3)
3
Part #11205-GAH-003
Valve comp,reed (Ref #4)
4
Part #14100-GZ4-670
Gasket a,reed val (Ref #5)
5
Part #14211-GZ4-790
Насос масляный (Ref #6)
6
Part #15100-GZ4-671
PLATE (Ref #7)
7
Part #15111-GZ4-670
Tube comp.,oil pa (Ref #8)
8
Part #15525-GZ4-670
Insulator,carb (Ref #9)
9
Part #16211-GW3-000
Pipe comp.,in. (Ref #10)
10
Part #17100-GZ4-670
Gasket b,reed val (Ref #11)
11
Part #17111-GZ4-790
Болт (Ref #12)
12
Part #90001-GW0-000
Bearing,radial ba (Ref #13)
13
Part #91005-GZ4-671
Oil seal,29x39x6 (Ref #14)
14
Part #91201-GZ4-671
Oil seal,20x31x7 (Ref #15)
15
Part #91202-KBN-922
Oil seal,15x25.5x (Ref #16)
16
Part #91201-GW3-932
Прокладка (Ref #17)
17
Part #91301-147-023
O-ring,23x1.9 (Ref #18)
18
Part #91304-GW3-003
Dowel pin, 8x20 (Ref #19)
19
Part #9430108200
Dowel pin, 8x20 (Ref #19)
19
Part #9430108200
Dowel pin, 8x20 (Ref #19)
19
Part #9430108200
Dowel pin, 8x20 (Ref #19)
19
Part #9430108200
Clip, tube (b6.5) (Ref #20)
20
Part #9500202650
Clip, tube (b6.5) (Ref #20)
20
Part #9500202650
Clip, tube (b6.5) (Ref #20)
20
Part #9500202650
Clip, tube (b6.5) (Ref #20)
20
Part #9500202650
BOLT (Ref #21)
21
Part #95701-060-140-0
Bolt, flange, 6x32 (Ref #22)
22
Part #95701-0603200
Bolt, flange, 6x40 (Ref #23)
23
Part #95701-0604000
Bolt, flange, 6x85 (Ref #24)
24
Part #95701-0608500
Болт (Ref #26)
26
Part #96001-0608500
Болт (Ref #26)
26
Part #96001-0608500
Болт (Ref #26)
26
Part #96001-0608500
Болт (Ref #26)
26
Part #96001-0608500
B/brg rad n/com (Ref #27)
27
Part #96100-620-230-0
