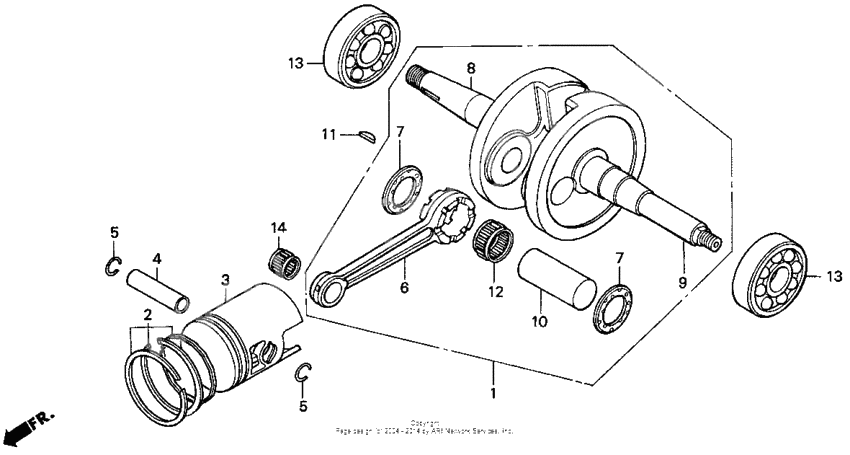

Crankshaft
Crankshaft
Вал коленчатый (Ref #1)
1
Part #13000-GZ4-671
Ring set (os) (0.50) (Ref #2)
2
Part #13012-GC8-305
Ring set (os) (0.25) (Ref #2)
2
Part #13011-GC8-305
Кольца поршневые (Ref #2)
2
Part #13010-GC8-305
Piston (0.25) (Ref #3)
3
Part #13106-GZ4-305
Piston (std) (Ref #3)
3
Part #13101-GW3-020
Piston (0.50) (Ref #3)
3
Part #13107-GZ4-305
Палец поршневой (Ref #4)
4
Part #13111-GC8-000
Clip (12mm) (Ref #5)
5
Part #13115-156-000
Clip (12mm) (Ref #5)
5
Part #13115-156-000
Clip (12mm) (Ref #5)
5
Part #13115-156-000
Clip (12mm) (Ref #5)
5
Part #13115-156-000
Rod.connecting (Ref #6)
6
Part #13201-GW3-300
Plate,conrod side (Ref #7)
7
Part #13202-169-003
Plate,conrod side (Ref #7)
7
Part #13202-169-003
Plate,conrod side (Ref #7)
7
Part #13202-169-003
Plate,conrod side (Ref #7)
7
Part #13202-169-003
Crankshaft,r. (Ref #8)
8
Part #13311-GZ4-670
Shaft,l crank (Ref #9)
9
Part #13321-GZ4-670
Палец шатунный (Ref #10)
10
Part #13381-KBN-900
New Genuine Part (Ref #11)
11
Part #90741-035-000
Bearing,connectin (Ref #12)
12
Part #91002-GW0-008
Bearing,connectin (Ref #12)
12
Part #91001-GW0-008
Bearing,connectin (Ref #12)
12
Part #91004-GW0-008
Bearing,connectin (Ref #12)
12
Part #91003-GW0-008
Brg,ball radial 6 (Ref #13)
13
Part #91005-GW0-023
Brg,ball radial 6 (Ref #13)
13
Part #91005-GW0-023
Brg,ball radial 6 (Ref #13)
13
Part #91005-GW0-023
Brg,ball radial 6 (Ref #13)
13
Part #91005-GW0-023
Bearing,connectin (Ref #14)
14
Part #91102-GZ4-671
