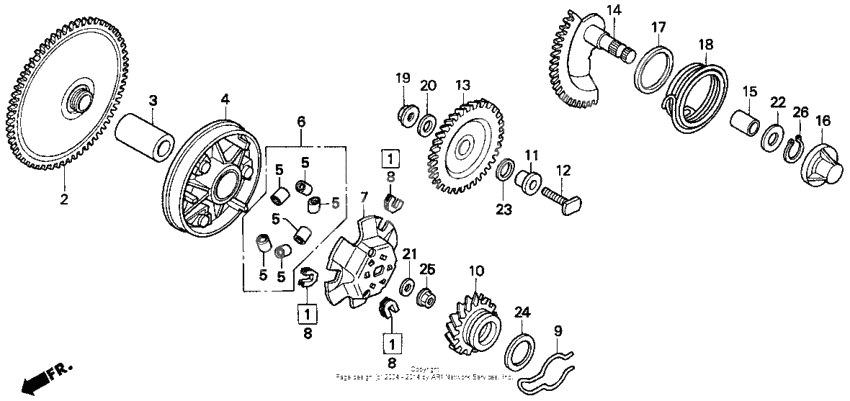

Drive face
Drive face
Face,drive (Ref #2)
2
Part #22102-GZ4-670
Boss,drive face (Ref #3)
3
Part #22105-GZ4-670
Face comp.,movabl (Ref #4)
4
Part #22110-GZ4-670
Plate,ramp (Ref #7)
7
Part #22131-GZ4-670
Spg friction star (Ref #9)
9
Part #28223-GZ4-670
Gear,kick driven (Ref #10)
10
Part #28231-GZ4-670
Collar, kick idle (Ref #11)
11
Part #28232-GZ4-670
Shaft,kick idle (Ref #12)
12
Part #28233-GZ4-670
Gear comp.,starte (Ref #13)
13
Part #28240-GZ4-670
Spindle comp,kick (Ref #14)
14
Part #28250-GZ4-670
Bush, kick spindle (Ref #15)
15
Part #28253-GN2-601
Cap,kick spindle (Ref #16)
16
Part #28253-GZ4-670
Collar, kick boss (Ref #17)
17
Part #28255-GS6-000
Spring,kick retur (Ref #18)
18
Part #28281-GZ4-670
Nut, flange (self-lock) (m8x1.25) (Ref #19)
19
Part #90309-428-731
Шайба (Ref #20)
20
Part #90406-371-000
Шайба (Ref #21)
21
Part #90410-KR0-000
Шайба (Ref #22)
22
Part #90451-GBL-870
Шайба (Ref #23)
23
Part #90451-001-000
Washer, thrust, 20mm (Ref #24)
24
Part #90454-428-000
Гайка (Ref #25)
25
Part #94050-10000
Circlip, external, 14mm (Ref #26)
26
Part #9451114000
