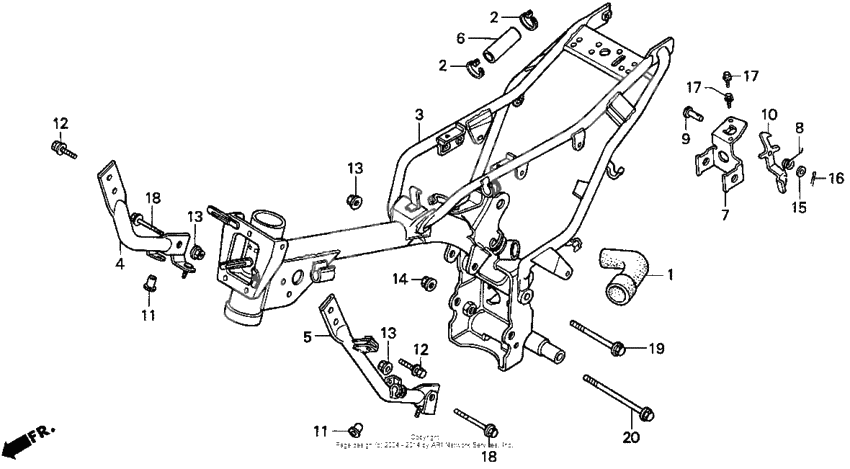

Frame
Frame
Hose,cooling (Ref #1)
1
Part #19410-GZ4-670
Band (black 3.5x140) (Ref #2)
2
Part #35701-MG9-950
Band (black 3.5x140) (Ref #2)
2
Part #35701-MG9-950
Band (black 3.5x140) (Ref #2)
2
Part #35701-MG9-950
Band (black 3.5x140) (Ref #2)
2
Part #35701-MG9-950
Frame (Ref #3)
3
Part #50100-GZ4-790
Tube,r.down (Ref #4)
4
Part #50105-GZ4-670
Tube, l. down (Ref #5)
5
Part #50106-GZ4-670
Tube,heat protect (Ref #6)
6
Part #50171-GZ4-670
Stay,c.d.i.unit (Ref #7)
7
Part #50341-GZ4-670
Spring, seat lock (Ref #8)
8
Part #77107-958-000
Pin, seat hook (Ref #9)
9
Part #77156-GZ4-670
Opener, seat (Ref #10)
10
Part #77160-GZ4-670
Nut, well (5mm) (Ref #11)
11
Part #90156-GZ4-670
Nut, well (5mm) (Ref #11)
11
Part #90156-GZ4-670
Nut, well (5mm) (Ref #11)
11
Part #90156-GZ4-670
Nut, well (5mm) (Ref #11)
11
Part #90156-GZ4-670
Bolt-washer (Ref #12)
12
Part #93404-080-200-8
Bolt-washer (Ref #12)
12
Part #93404-080-200-8
Bolt-washer (Ref #12)
12
Part #93404-080-200-8
Bolt-washer (Ref #12)
12
Part #93404-080-200-8
Гайка (Ref #14)
14
Part #94050-10000
Шайба (Ref #15)
15
Part #94101-06800
PIN (Ref #16)
16
Part #94201-20150
BOLT (Ref #17)
17
Part #95701-060-120-0
BOLT (Ref #17)
17
Part #95701-060-120-0
BOLT (Ref #17)
17
Part #95701-060-120-0
BOLT (Ref #17)
17
Part #95701-060-120-0
Болт (Ref #18)
18
Part #95801-0804000
Болт (Ref #18)
18
Part #95801-0804000
Болт (Ref #18)
18
Part #95801-0804000
Болт (Ref #18)
18
Part #95801-0804000
Bolt,flange, 8x65 (Ref #19)
19
Part #95801-0806500
Bolt, flange, 10x130 (Ref #20)
20
Part #95801-101-300-0
