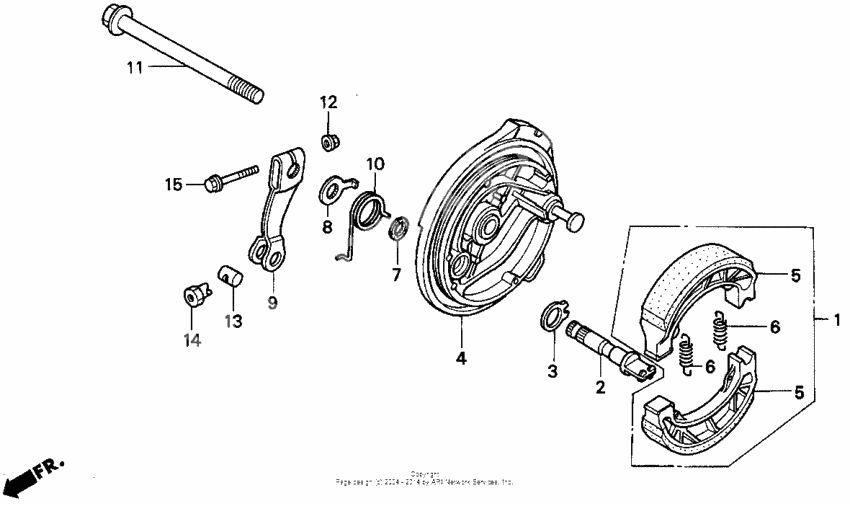

Front brake panel
Front brake panel
Superceded (Ref #1)
1
Part #06430-GAG-505
Cam,rr.brake (Ref #2)
2
Part #43141-KB7-000
Seat, rr. brake cam (Ref #3)
3
Part #43142-MN1-670
Panel comp*nh138* (Ref #4)
4
Part #45100-GZ4-670ZA
Spring, brake shoe (Ref #6)
6
Part #45133-028-000
Spring, brake shoe (Ref #6)
6
Part #45133-028-000
Spring, brake shoe (Ref #6)
6
Part #45133-028-000
Spring, brake shoe (Ref #6)
6
Part #45133-028-000
Dust seal, brake cam (Ref #7)
7
Part #45134-KB7-005
Indicator,fr.brk. (Ref #8)
8
Part #45145-KB7-000
Arm,front brake (Ref #9)
9
Part #45410-GZ4-670
Spg.,brk.arm (Ref #10)
10
Part #45435-GM9-000
Bolt,rr.fork pivo (Ref #11)
11
Part #90121-167-860
Гайка (Ref #12)
12
Part #94050-06000
Joint a (Ref #13)
13
Part #95015-31001
Nut a, brake rod adjusting (Ref #14)
14
Part #9501541000
Bolt, flange, 6x28 (Ref #15)
15
Part #95701-0602800
