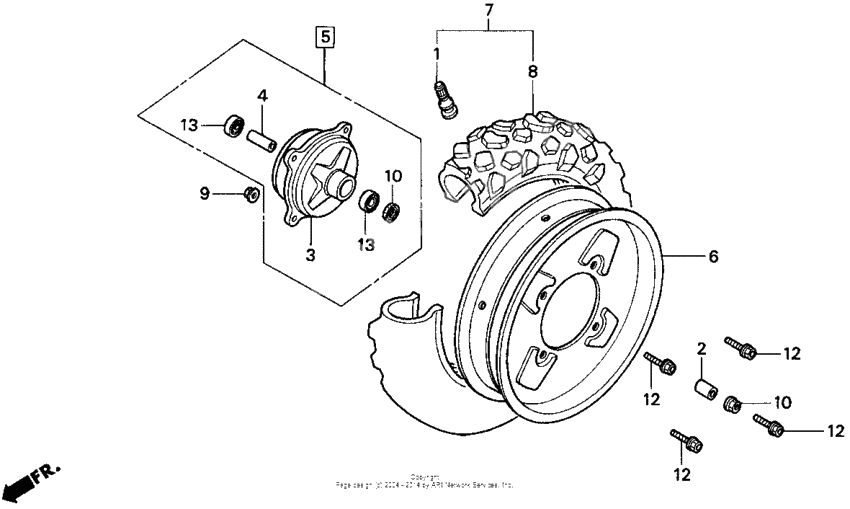

Front wheel
Front wheel
Клапан, обод колеса (Ref #1)
1
Part #42753-ML7-004
Collar,fr.wheel s (Ref #2)
2
Part #44311-GZ4-670
Hub comp.,*nh138* (Ref #3)
3
Part #44601-GZ4-670ZA
Collar, fr (Ref #4)
4
Part #44620-GC8-000
Rim comp.,*nh138* (Ref #6)
6
Part #44701-GZ4-671ZA
Tire (100/90-12) (Ref #7)
7
Part #44711-GZ4-671
Nut, u, 10mm (Ref #9)
9
Part #90304-GE8-003
Nut, flange, 12mm (Ref #10)
10
Part #90306-KF0-003
Nut, flange, 12mm (Ref #10)
10
Part #90306-KF0-003
Nut, flange, 12mm (Ref #10)
10
Part #90306-KF0-003
Nut, flange, 12mm (Ref #10)
10
Part #90306-KF0-003
Bearing (6201u) (Ref #13)
13
Part #96140-6201010
Bearing (6201u) (Ref #13)
13
Part #96140-6201010
Bearing (6201u) (Ref #13)
13
Part #96140-6201010
Bearing (6201u) (Ref #13)
13
Part #96140-6201010
